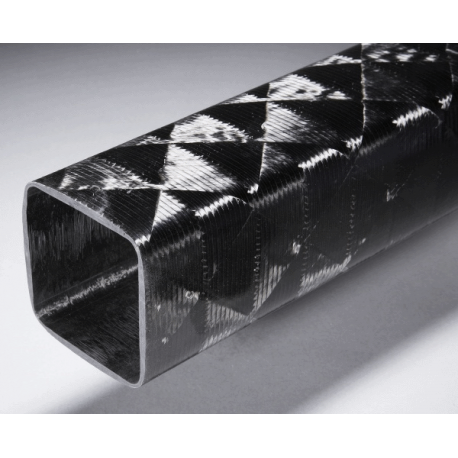

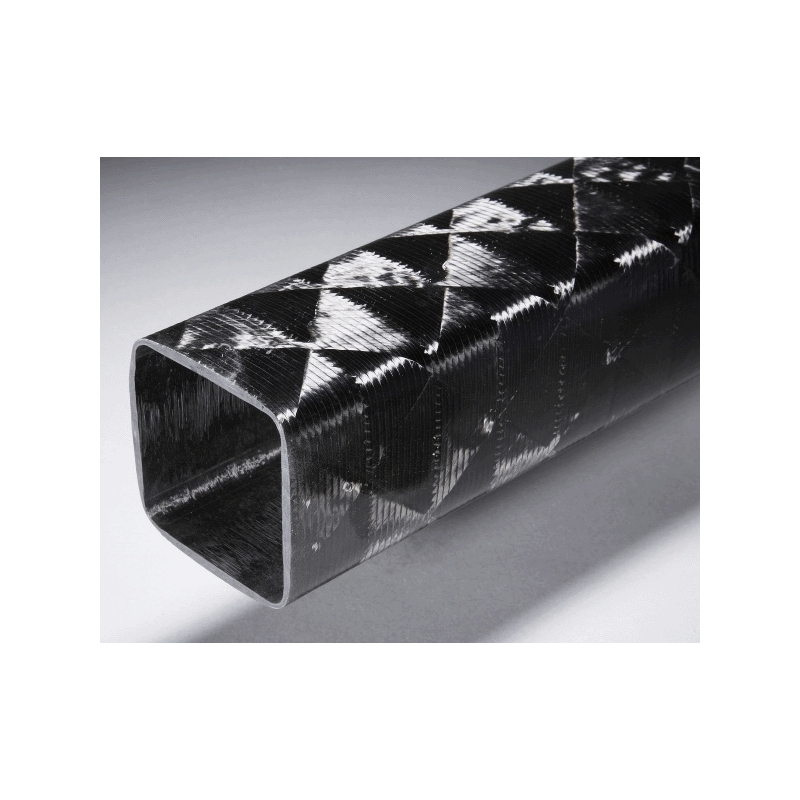

Carbon square tube 40x40mm
CFWPC40X40
New product
Square tube made by filament winding on a 40X40mm mandrel.
More info
Internal dimensions : 40x40mm
Carbon fiber: T700
Maxi Température : 130°C
Caution: external profile slightly rounded if the carbon thickness is important.
Finish with a slight adhesion (0,05mm)

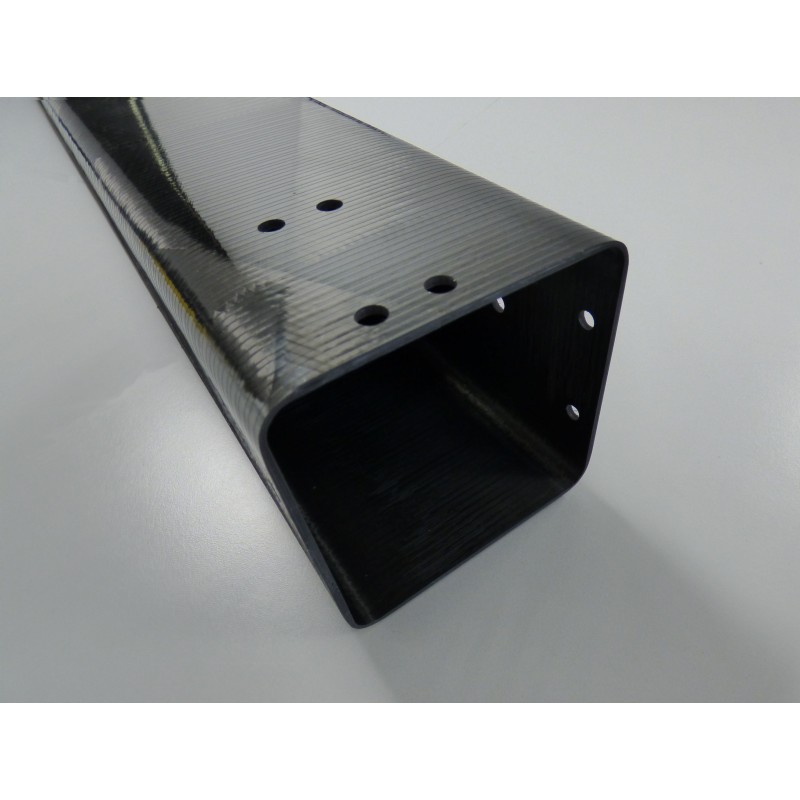

Cutting to your length and machining is possible, contact us.
Data sheet
| Max temperature : | 130°C |
| Diameters tolerance : | +/-0,3mm |
| Mechanical stress : | Flexural / Torsionnal / Compression stress |
| Flexural modulus : | 70 GPa |
| Composite stacking : | Fibers 90° and 20° |
| Process : | Filament Winding |
| Internal diameter : | 040 |
| Thickness : | 2,5mm |
| Material : | HS Carbon fiber |
| Cosmetics : | Grip surface |
| Density: | 1,6 g/cm3 |
