Poutre carbone carrée 30x30mm View larger

Carbon square tube 20x20x560 th. 2mm

CFWPC20x20x960E1,5BA

New product

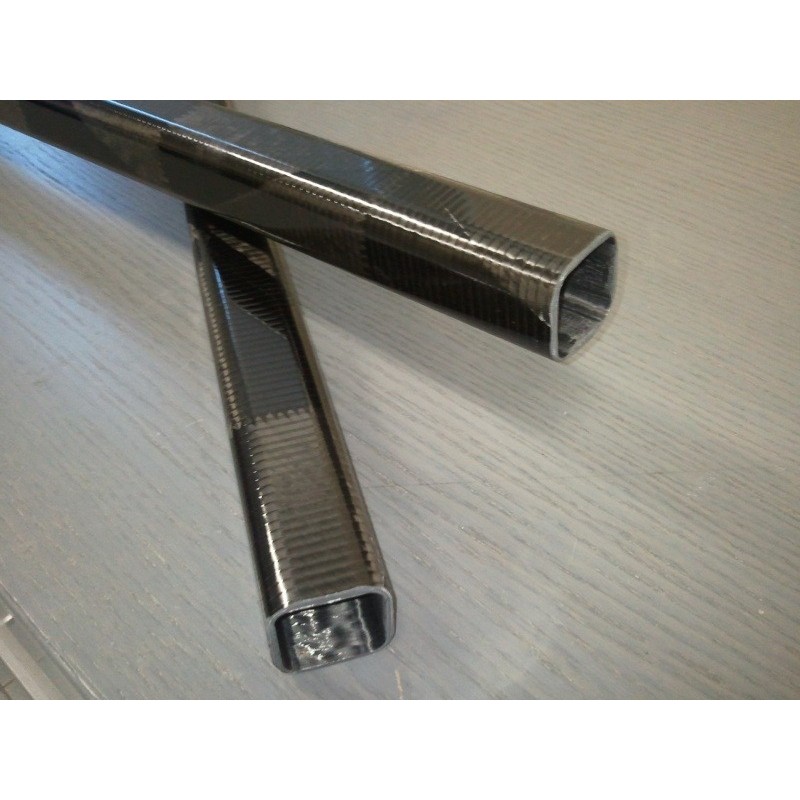

Square tube made by filament winding on a 20X20mm mandrel.

More details

Warning: Last items in stock!

42,50 €

:

85,00 €

More info

Internal dimensions : 20x20mm

Thickness: 2mm

Lenght : 560mm

Carbon fiber: T700

Maxi Température : 130°C

Caution: external profile slightly rounded if the carbon thickness is important.

Finish with a slight adhesion (0,05mm)

Cutting to your length and machining is possible, contact us.

Data sheet

Max temperature : 130°C
Diameters tolerance : +/- 0,4mm
Mechanical stress : Flexural / Torsionnal / Compression stress
Flexural modulus : 70 GPa
Composite stacking : Fibers 90° and 20°
Process : Filament Winding
Internal diameter : 020
Material : HS Carbon fiber
Cosmetics : Grip surface
Density: 1,6 g/cm3
