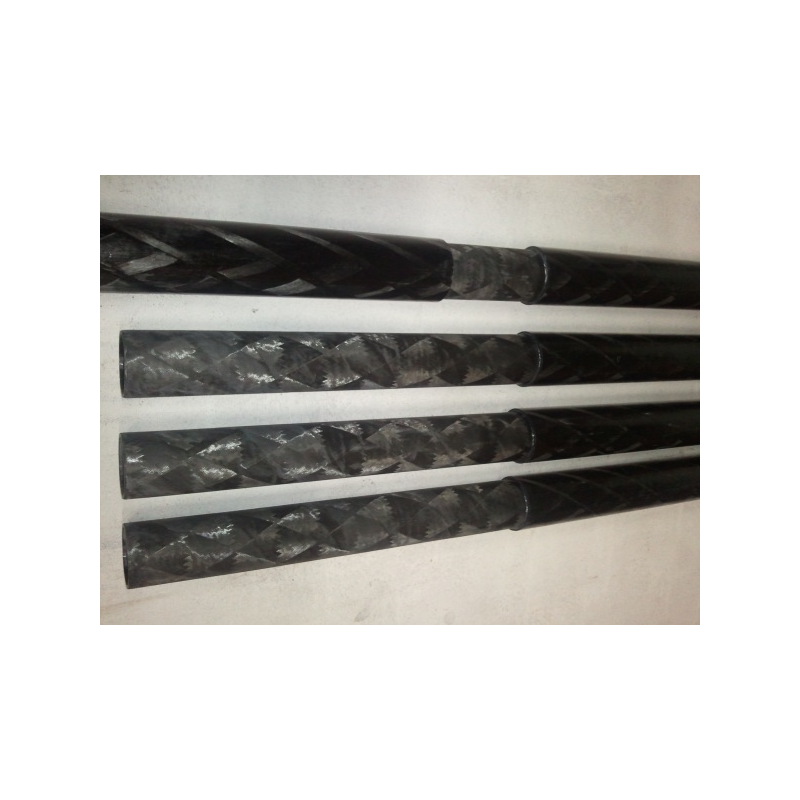

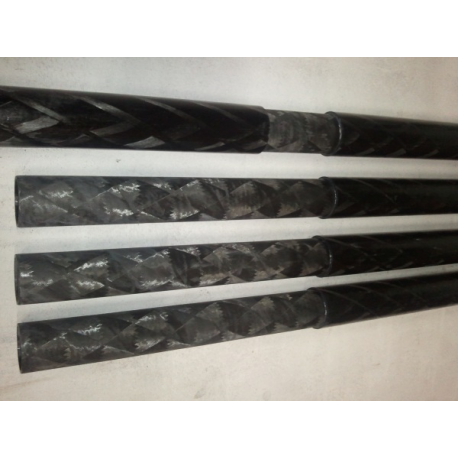

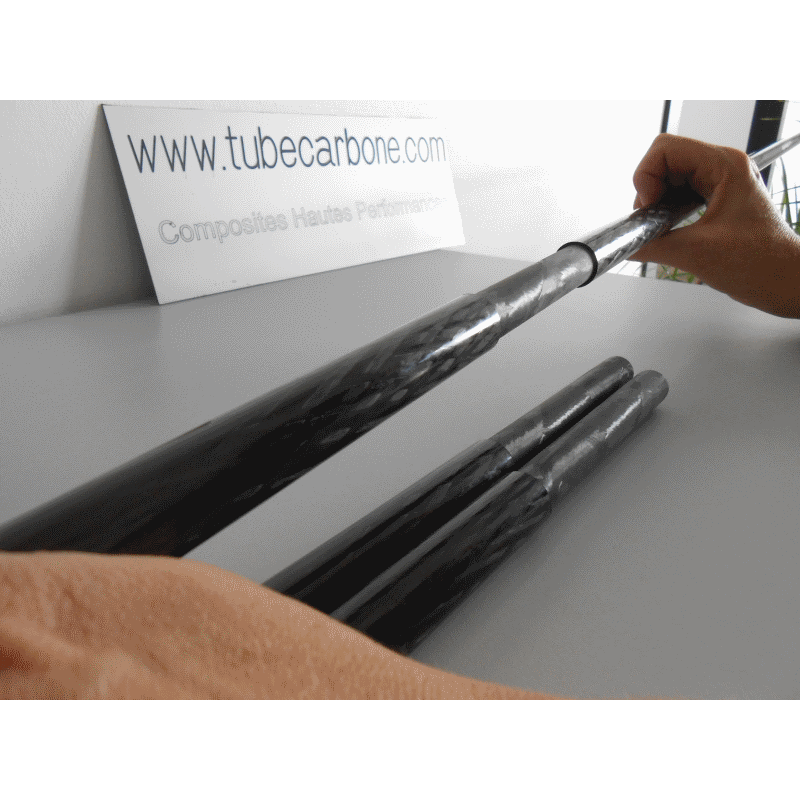

Carbon pole 17x20mm Standard
New product
Carbon pole with 17x20x1000mm pullwinding carbon tubes.
4000
Items on stock
More info
Bonded sleeves (14x17x250mm) made in filament winding : strength.
Length of each element with sleeve: 1125mm
4m carbon pole includes 3 elements with sleeves and one single element 17x20x1000mm.
BE CAREFULL : carbon is current conductor: use away from power lines.
See insulating glass fiber pole if this criterion is important.

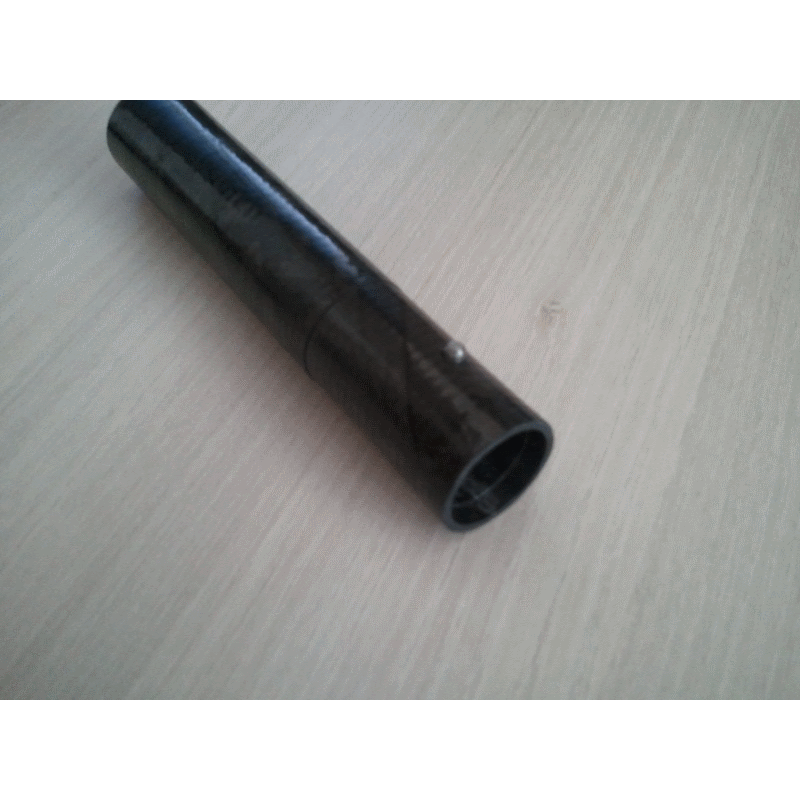

Available version with lock.
Data sheet
| Max temperature : | 80°C |
| Diameters tolerance : | +/-0,3mm |
| Mechanical stress : | Flexural stress |
| Flexural modulus : | 110 GPa |
| Composite stacking : | 85% UD+external layer 37°+internal 90° |
| Process : | Pullwinding |
| Internal diameter : | 017 |
| Thickness : | 1,5mm |
| Material : | HS Carbon fiber |
| Cosmetics : | Smooth - 30° fiber |
| Density: | 1,6 g/cm3 |
