Carbon pole 34x38mm Standard
New product

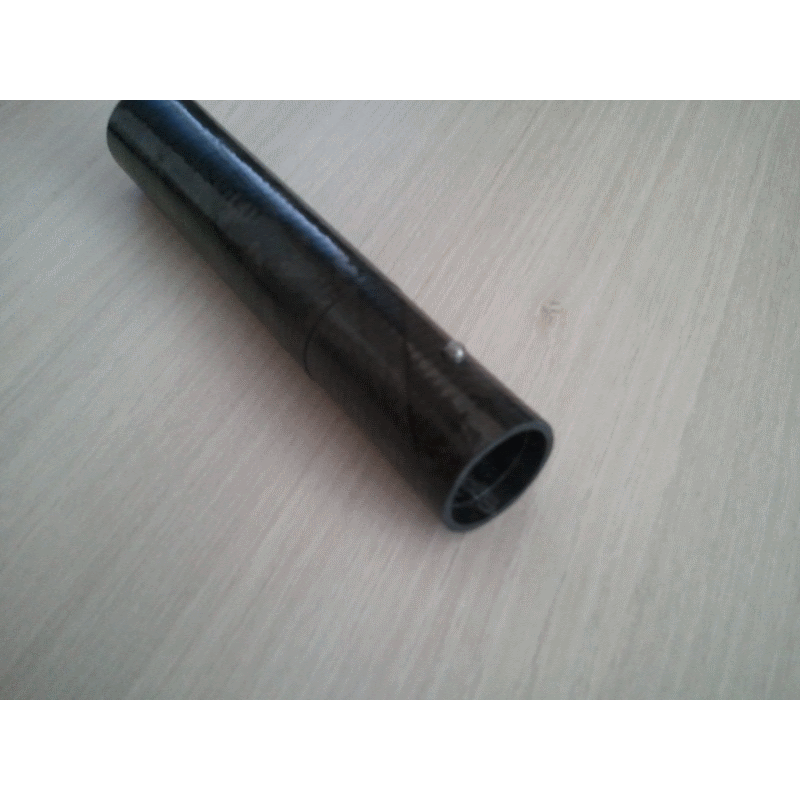

Carbon pole with 34x38x2000mm pullwinding carbon tubes.
More info

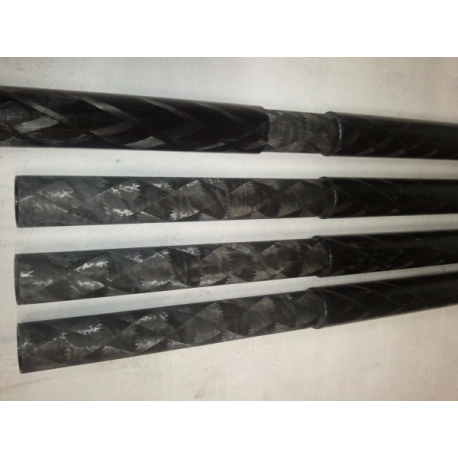

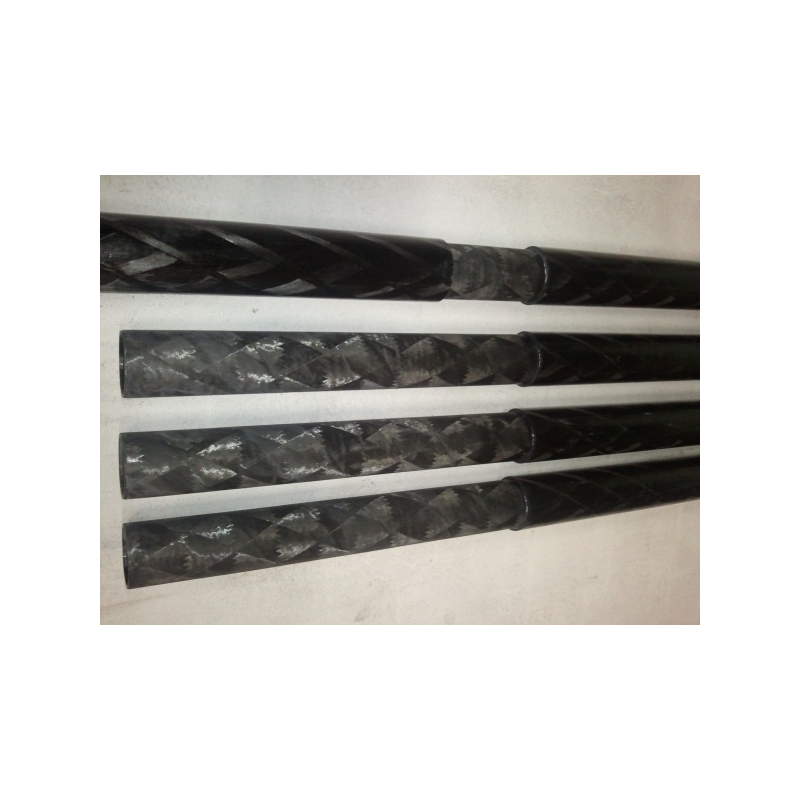

Bonded sleeves (32x34x500mm) made in Pullwinding.
Length of each element with sleeve: 2250mm
4m carbon pole includes 2 elements with sleeves (length 4250mm).
6m carbon pole includes 3 elements with sleeves (length 6250mm).
BE CAREFULL : carbon is current conductor: use away from power lines.
See insulating glass fiber pole if this criterion is important.
Available version with lock.
Data sheet
| Max temperature : | 80°C |
| Diameters tolerance : | +/-0,3mm |
| Mechanical stress : | Flexural/ Stress |
| Flexural modulus : | 110 GPa |
| Composite stacking : | 85% UD+external layer 37°+internal 90° |
| Process : | Pullwinding |
| Internal diameter : | 034 |
| Thickness : | 2mm |
| Material : | HS Carbon fiber |
| Cosmetics : | Smooth - 30° fiber |
| Density: | 1,6 g/cm3 |
