Glass fiber tube 12x15mm Technical View larger

Glass fiber tube 40x45mm Technical

CFWTV45X48x2000BA

New product

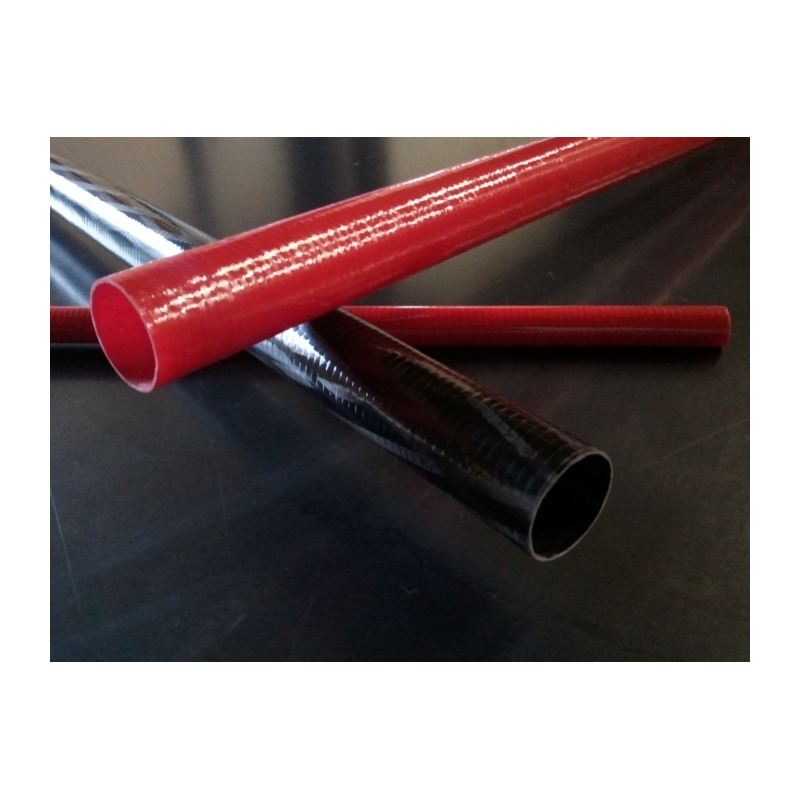

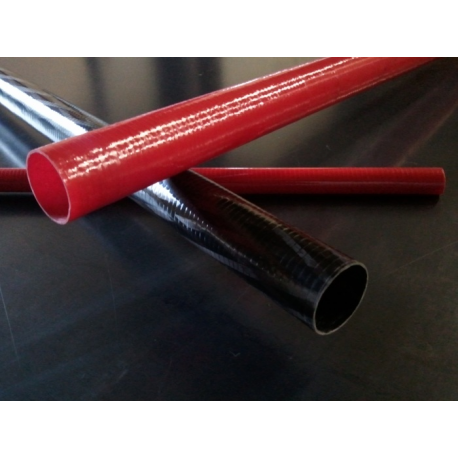

Filament wound glass fiber tube.
Technical applications: pressure, compression or torsionnal stress ...
We can help you to design your tube

More details

Warning: Last items in stock!

62,50 €

:

156,26 €

More info

E glass black or red.
Filament winding allows specific applications: insulation, inner pressure etc...
Specific fiber orientations can be realized regarding your load cases.
Cutting operations possible

Data sheet

Max temperature : 130°C
Diameters tolerance : +/-0,20mm
Mechanical stress : Flexural / Torsionnal / Compression stress
Flexural modulus : 45 GPa
Composite stacking : Fibers 90° - 20° - 30°
Process : Filament Winding
Internal diameter : 045
Thickness : 2,5mm
Material : E Glass
Cosmetics : 30° fiber - Grip surface
Density: 2 g/cm3
Color : Black or red
