Carbon tube 12x14mm Technical
New product

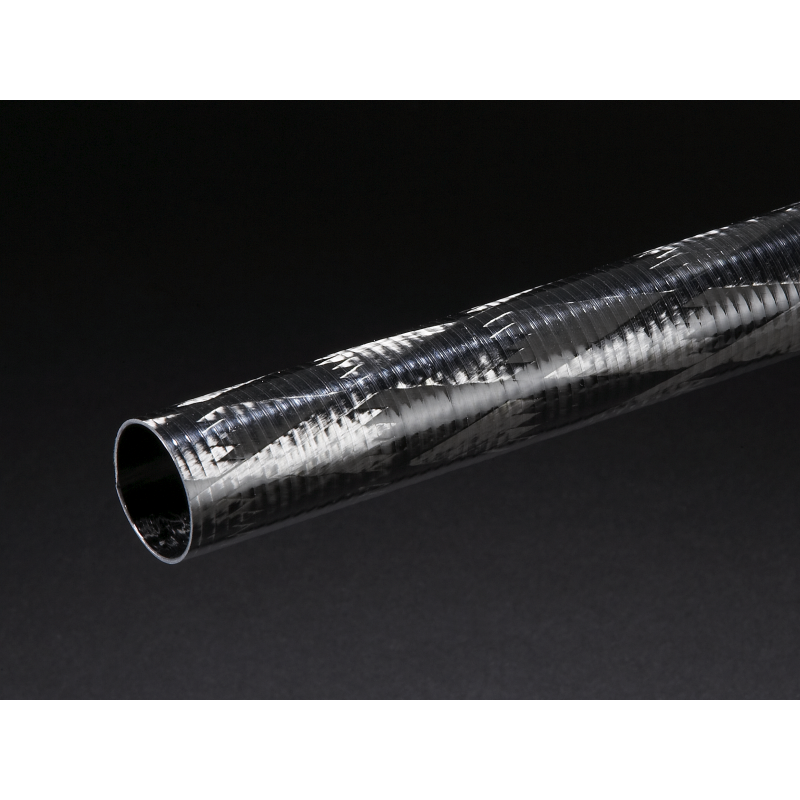

Filament wound carbon tube using HR carbon fiber and epoxy resin.
The one tube which can be adapted to a specific thickness, or a specific load case.
100
Items on stock
More info
Technical tube with flexural performance lower than Pullwinding tubes, but recommanded when oher stresses on the tube: torsionnal or pressure for example.
This tube can support 130°C temperature (Pullwinding 80°C)
These tubes are not in stock but we have a very short manufacturing time: 10 to 12 days
The main advantage for the customer: we can change the thickness or the angles of the layers if necessary.
Data sheet
| Max temperature : | 130°C |
| Diameters tolerance : | +/-0,20mm |
| Mechanical stress : | Flexural / Torsionnal / Compression stress |
| Flexural modulus : | 70 GPa |
| Composite stacking : | Fibers 90° and 20° |
| Process : | Filament Winding |
| Internal diameter : | 012 |
| Thickness : | 1mm |
| Material : | HS Carbon fiber |
| Cosmetics : | Grip surface |
| Density: | 1,6 g/cm3 |
