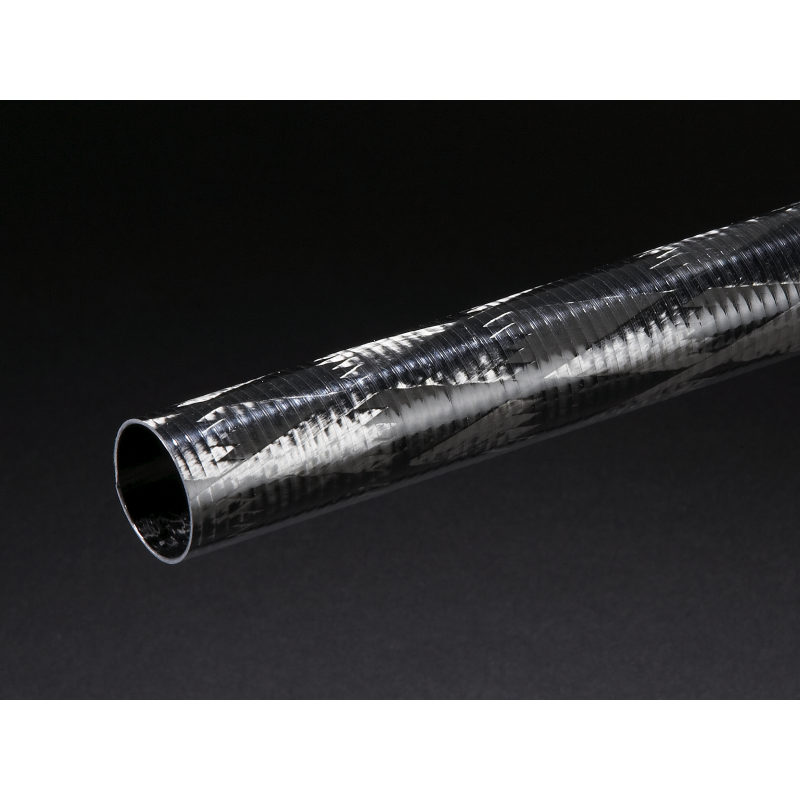

Carbon tube 16x20mm Technical View larger

Carbon tube 16x20x1650mm Technical

CFWTC16X20X1500BA

New product

Filament wound carbon tube using HR carbon fiber and epoxy resin.
The one tube which can be adapted to a specific thickness, or a specific load case.

More details

Items on stock

59,44 €

:

118,88 €

More info

Technical tube with flexural performance lower than Pullwinding tubes, but recommanded when oher stresses on the tube: torsionnal or pressure for example.

This tube can support 130°C temperature (Pullwinding 80°C)





Data sheet

Max temperature : 130°C
Diameters tolerance : +/-0,20mm
Mechanical stress : Flexural / Torsionnal / Compression stress
Flexural modulus : 85 GPa
Composite stacking : Fibers 90° - 20° - 30°
Process : Filament Winding
Internal diameter : 016
Thickness : 2mm
Material : HS Carbon fiber
Cosmetics : 30° fiber - Grip surface
Density: 1,6 g/cm3
