Carbon plate 0,5mm Thick
New product
High quality carbon/epoxy plate
Smooth and glossy surface
Milling and water-jet cutting possible
More info
Material :
HS carbon fiber T 700 Type.
12K Twill fabric core
3K Twill fabric finish
Epoxy resin Tg 120°C
Fiber volume ratio Vf= 60%
Density : 1,55 g/cm3
Process :
Pre-preg fabrics compression
Mechanical properties :
Interlaminar shear strength: 67 MPa
Under request :
- Peel ply finish (for gluing)
- Grinded surface (better tolerance)

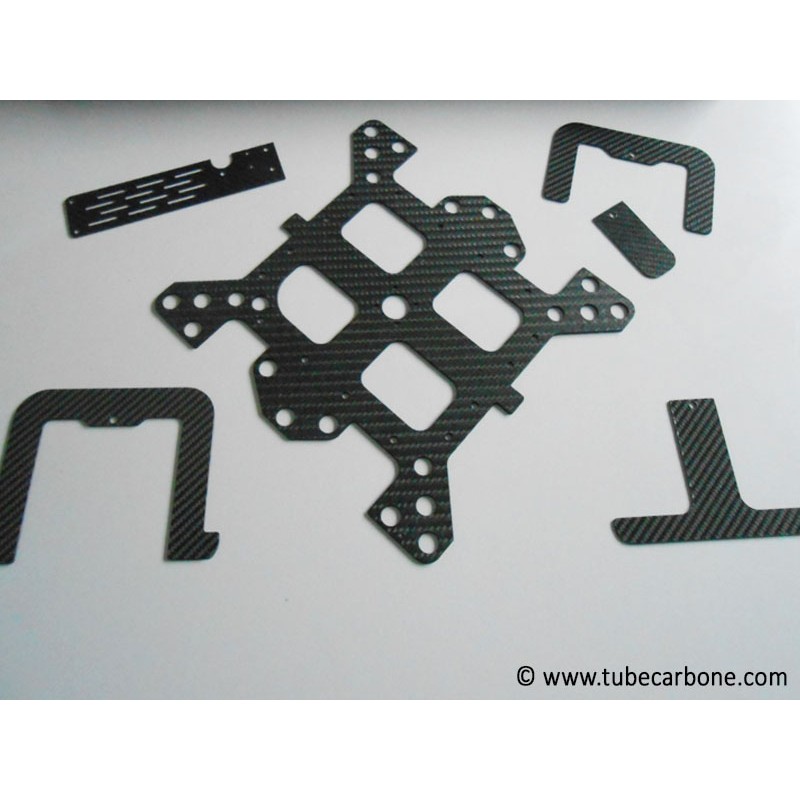

- Milling operation (regarding your layouts) or water-jet cutting
Data sheet
| Max temperature : | 130°C |
| Mechanical stress : | surface pressure |
| Flexural modulus : | 65 GPa |
| Composite stacking : | 0°/90° fibers |
| Process : | High pressure moulding |
| Thickness : | 0,5mm |
| Material : | HS Carbon fiber |
| Cosmetics : | Twill fabric |
| Density: | 1,6 g/cm3 |
| Thickness tolerance : | +/-0,15mm |
| Thermal expansion: | 3,8 x 10E-6 |
| Flexural strenght: | 600 Mpa |
| Tensile strenght: | 550 MPa |
