Carbon tube 35x36mm Technical 6K

CFWTC35x36.5X1000BA

New product

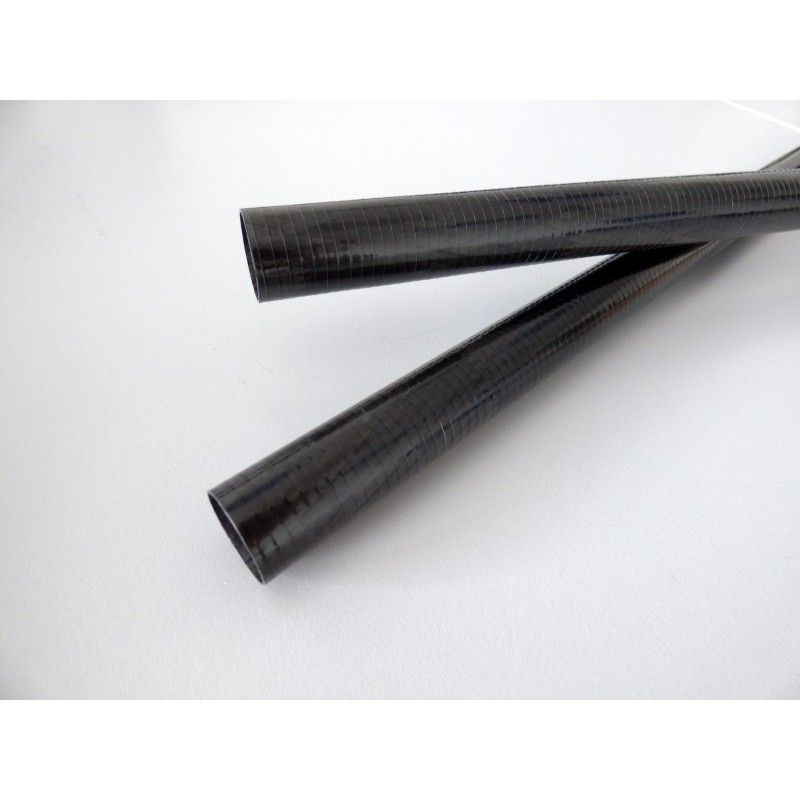

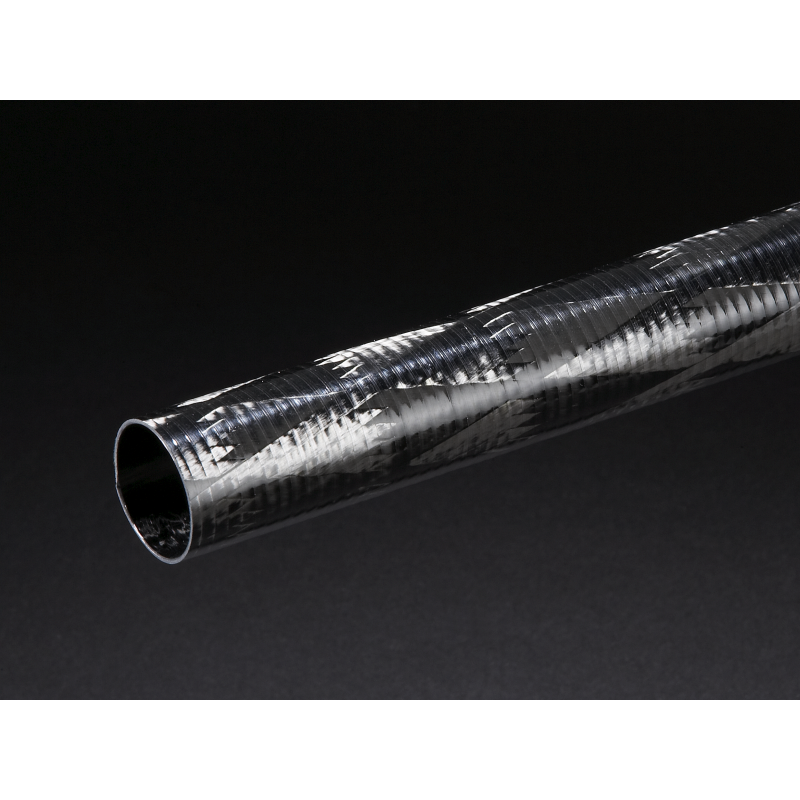

Carbon tube EXTRA LIGHT made of filament winding.

Carbon fiber 6K  HR and epoxy resin.

More details

Produit en stock.

Warning: Last items in stock!

49,00 € tax excl.

:

98,00 € tax excl.

More info

Thin tube (about 0,6mm thickness).

Tube extra light tube have a good flexual resistance and a good resistance at shock and at crushing (Unlike wrapped light tubes, they breack under the pressure of the fingers).

They keep the flexibility og filament winding process: we can change the thickness or the angles of the layers if necessary.

Warning: tubes have +0,2mm on external diameter (ex: the 10x11 is about 11,2mm). POSSIBLE to have tube with a thinner external diameter -0,2mm (contact us)

The main advantage for the customer: we can change the thickness or the angles of the layers if necessary.

Specific cutting or milling possible.

Data sheet

Max temperature : 130°C
Mechanical stress : Flexural
Flexural modulus : 70 GPa
Composite stacking : Fibres à 90° et 15°
Process : Filament Winding
Internal diameter : 035
Thickness : 0,75mm
Material : Carbone HR 6K
Cosmetics : Grip surface
Density: 1,6 g/cm3
Outside diameter tolerance : +/- 0,15mm
Impact resistance ++
