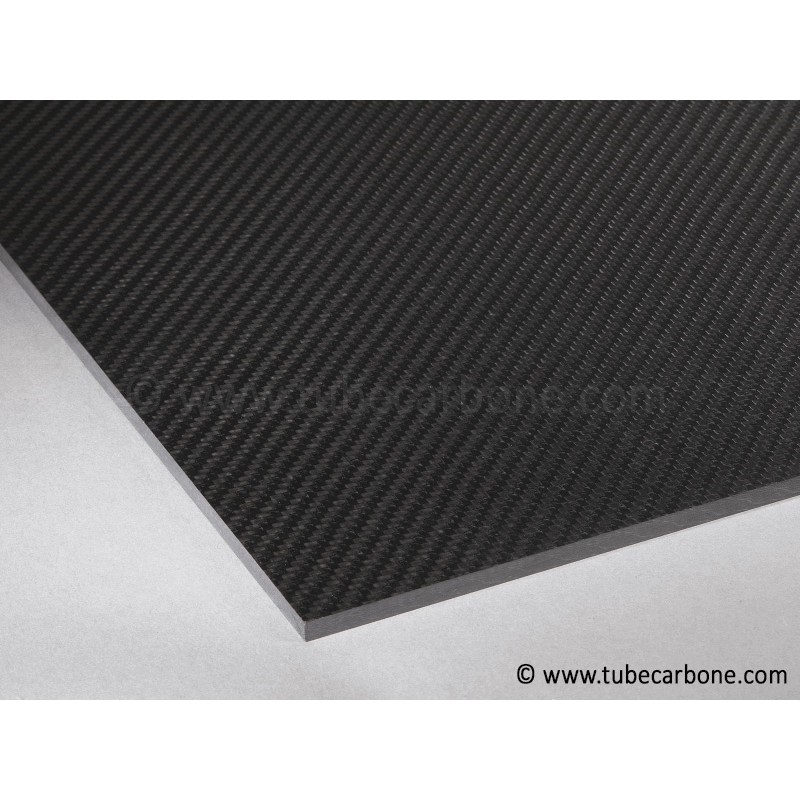

Carbon plate 4mm Thick

New product

High quality carbon/epoxy plate
Smooth and glossy surface
Milling and water-jet cutting possible

More details


281,12 €

Quantity Discount You Save
2 8% Up to 44,98 €

More info

Material :

HS carbon fiber T 700 Type.
12K Twill fabric core
3K Twill fabric finish
Epoxy resin Tg 120°C
Fiber volume ratio Vf= 60%
Density : 1,55 g/cm3
Thickness 1mm to 10mm on the shop (up to 20mm under request)

Process :
Pre-preg fabrics compression

Mechanical properties :
Interlaminar shear strength: 67 MPa

- Grinded surface (better tolerance- See options - The thickness is reduced: 0,6mm less)

 Under request :
- Peel ply finish (for gluing)

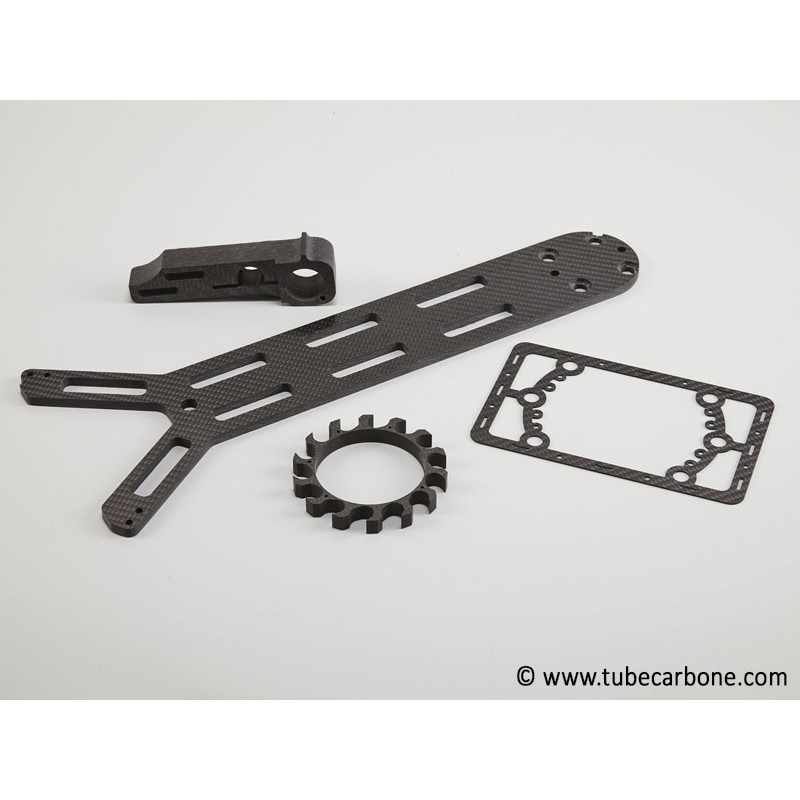

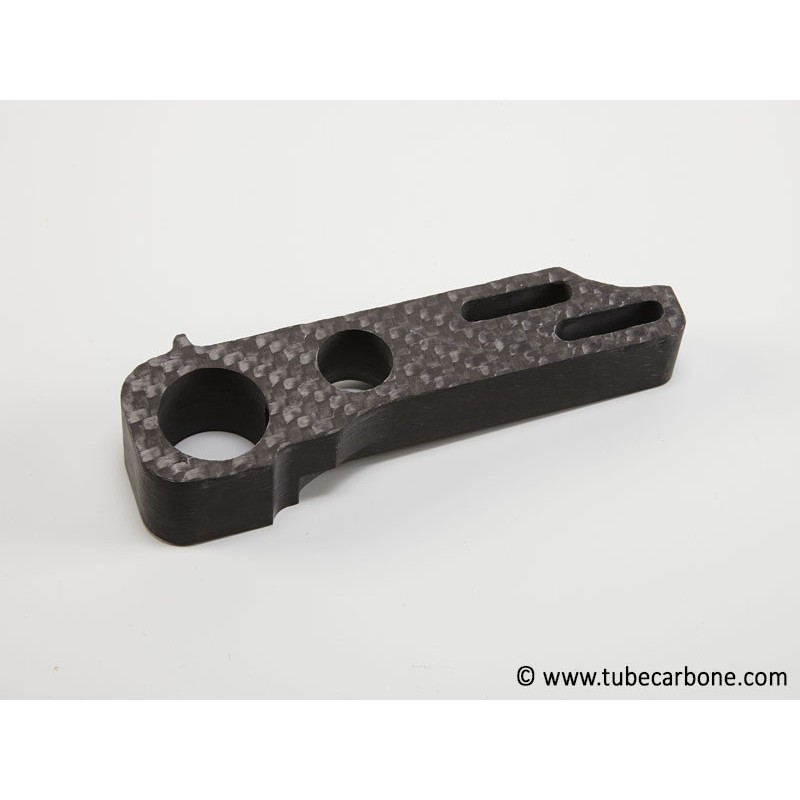

- Milling operation (regarding your layouts) or water-jet cutting


Data sheet

Max temperature : 150°C
Mechanical stress : surface pressure
Flexural modulus : 65 GPa
Composite stacking : 0°/90° fibers
Process : High pressure moulding
Thickness : 4mm
Material : HS Carbon fiber
Cosmetics : Twill fabric
Density: 1,6 g/cm3
Thickness tolerance : +/-0,45mm
Thermal expansion: 3,8 x 10E-6
Flexural strenght: 600 Mpa
Tensile strenght: 550 MPa
