New product

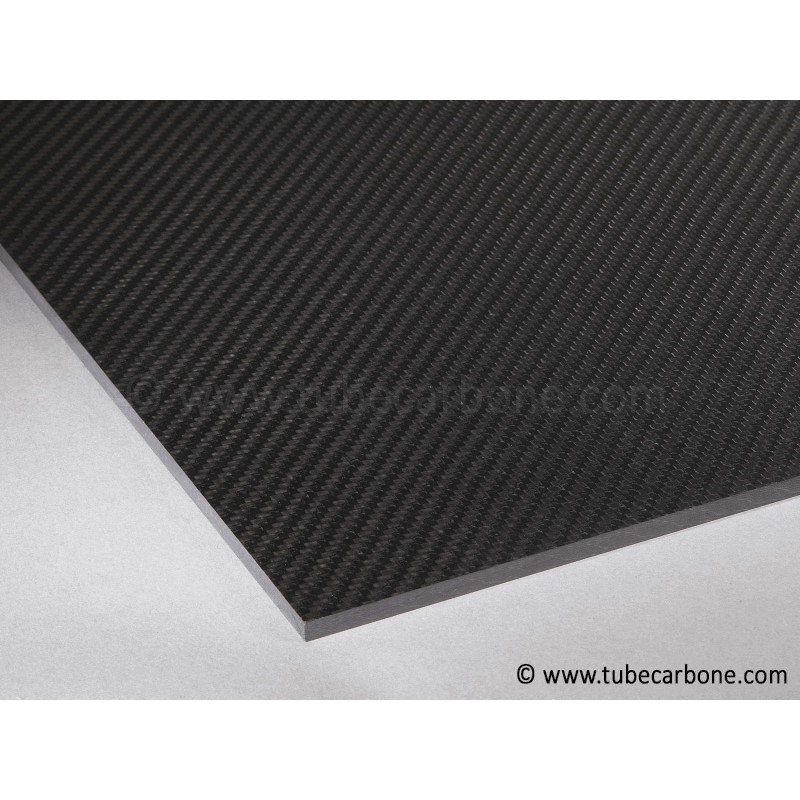

High quality carbon/epoxy plate
Smooth and glossy surface

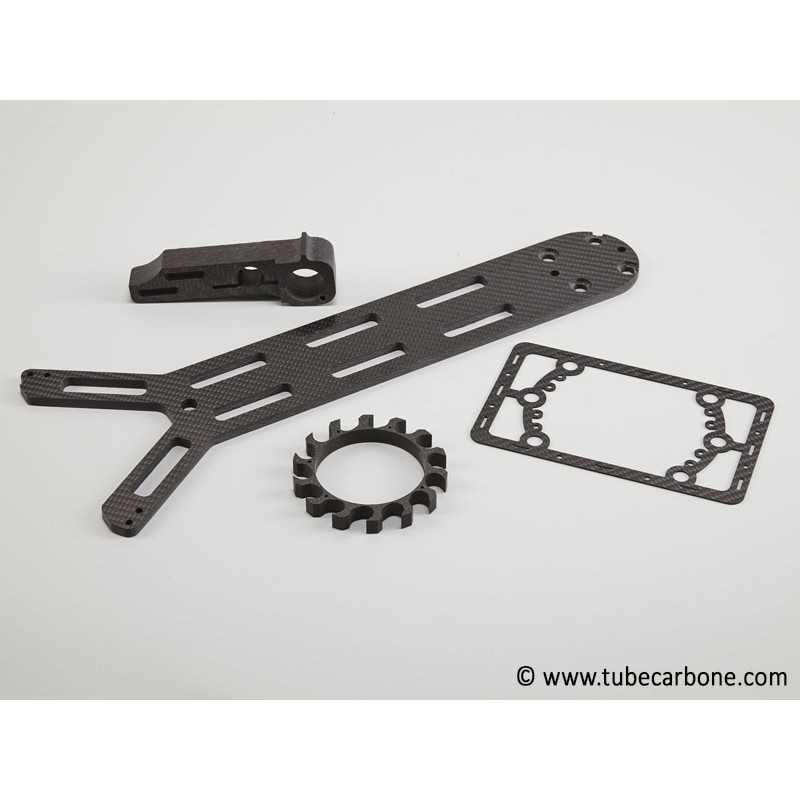

Milling and water-jet cutting possible
Warning: Last items in stock!
Availability date:
Material :
HS carbon fiber T 700 Type.
12K Twill fabric core
3K Twill fabric finish
Epoxy resin Tg 120°C
Fiber volume ratio Vf= 60%
Density : 1,55 g/cm3
Thickness 1mm to 10mm on the shop (up to 20mm under request)
Process :
Pre-preg fabrics compression
Mechanical properties :
Interlaminar shear strength: 67 MPa
- Grinded surface (better tolerance- See options - The thickness is reduced: 0,6mm less)
Under request :
- Peel ply finish (for gluing)

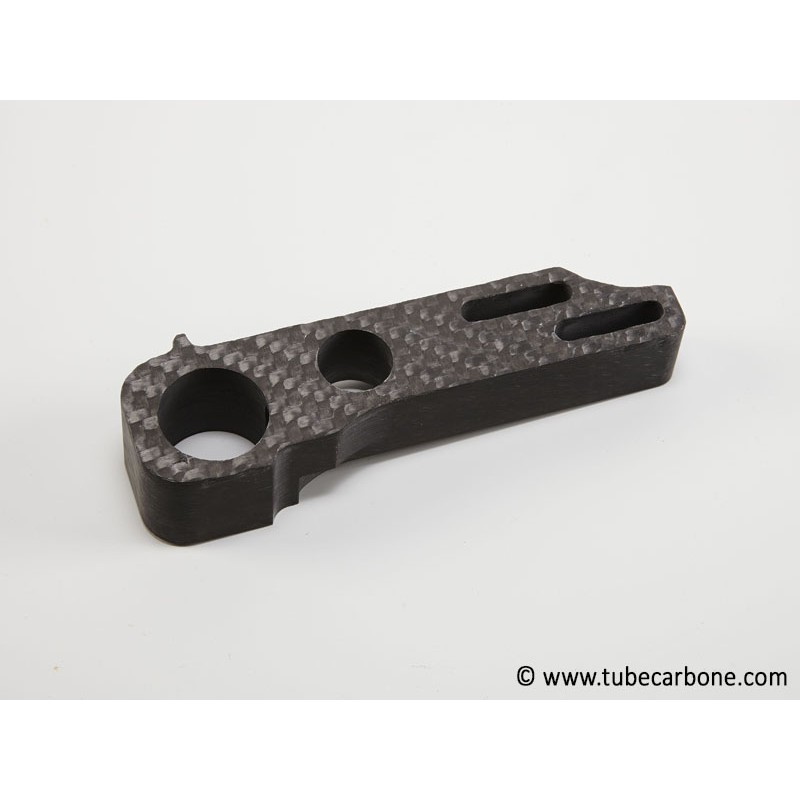

- Milling operation (regarding your layouts) or water-jet cutting
Max temperature : | 130°C |
Mechanical stress : | surface pressure |
Flexural modulus : | 65 GPa |
Composite stacking : | 0°/90° fibers |
Process : | High pressure moulding |
Thickness : | 2,5mm |
Material : | HS Carbon fiber |
Cosmetics : | Twill fabric |
Density: | 1,6 g/cm3 |
Thickness tolerance : | +/-0,35mm |
Thermal expansion: | 3,8 x 10E-6 |
Flexural strenght: | 600 Mpa |
Tensile strenght: | 550 MPa |
