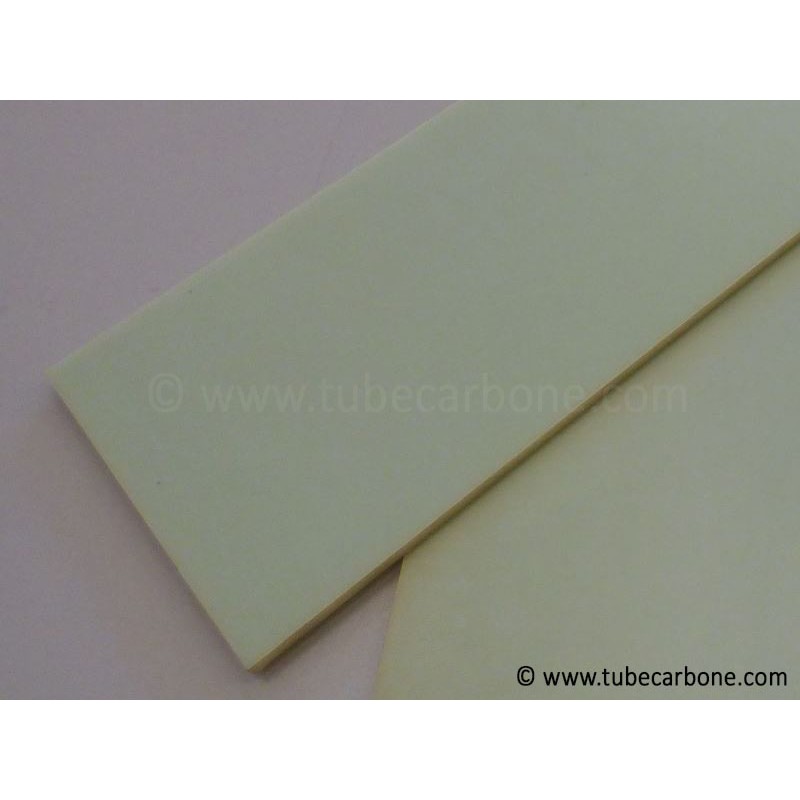

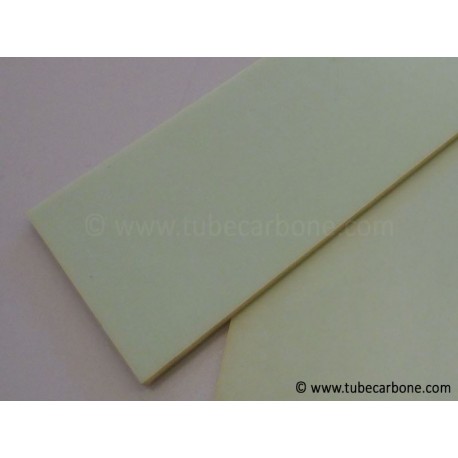

Glass fiber plate 4mm

New product

E glass epoxy plate.
High quality: high pressure pre-preg moulding


More details


89,28 €


More info

3 formats on the shop.

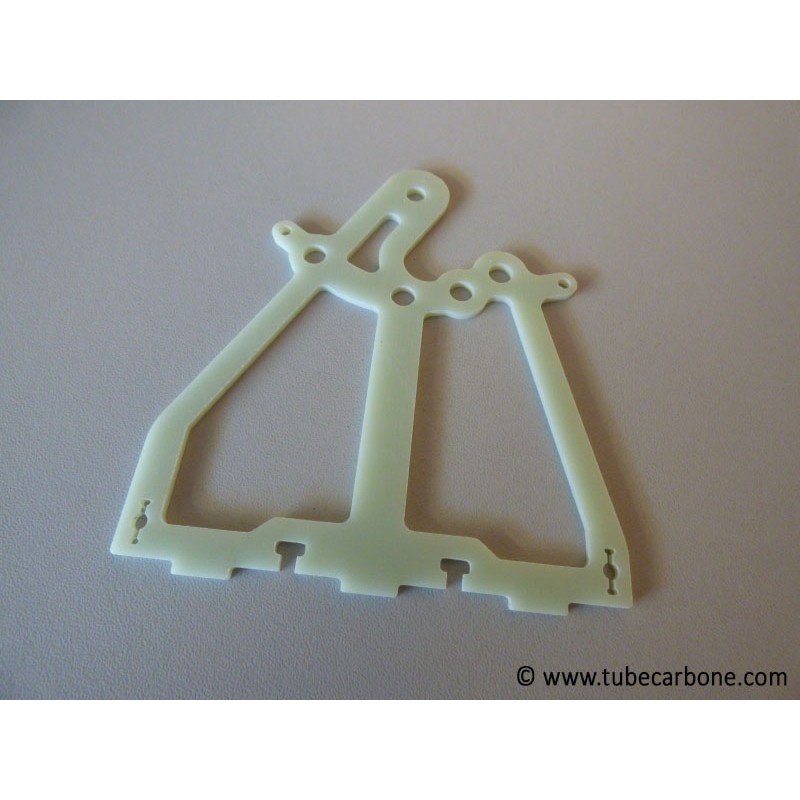

Specific cutting possible (transmit your layouts).

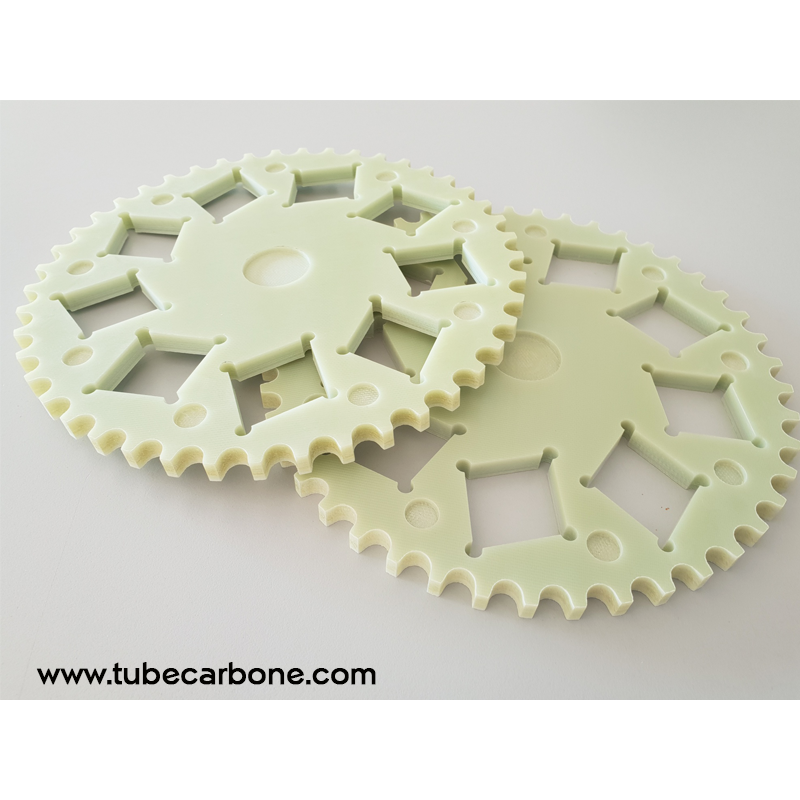

Milling and drilling under request.

Data sheet

Max temperature : 180°C
Mechanical stress : surface pressure
Flexural modulus : 35 GPa
Composite stacking : 0°/90° fibers
Process : High pressure moulding
Thickness : 4mm
Material : E Glass
Density: 2 g/cm3
Thickness tolerance : +/-0,25mm
Color : Natural
Thermal expansion: 1,3 x 10E-5
Flexural strenght: 350 MPa
Tensile strenght: 240 MPa
Compression strenght: 500 MPa
