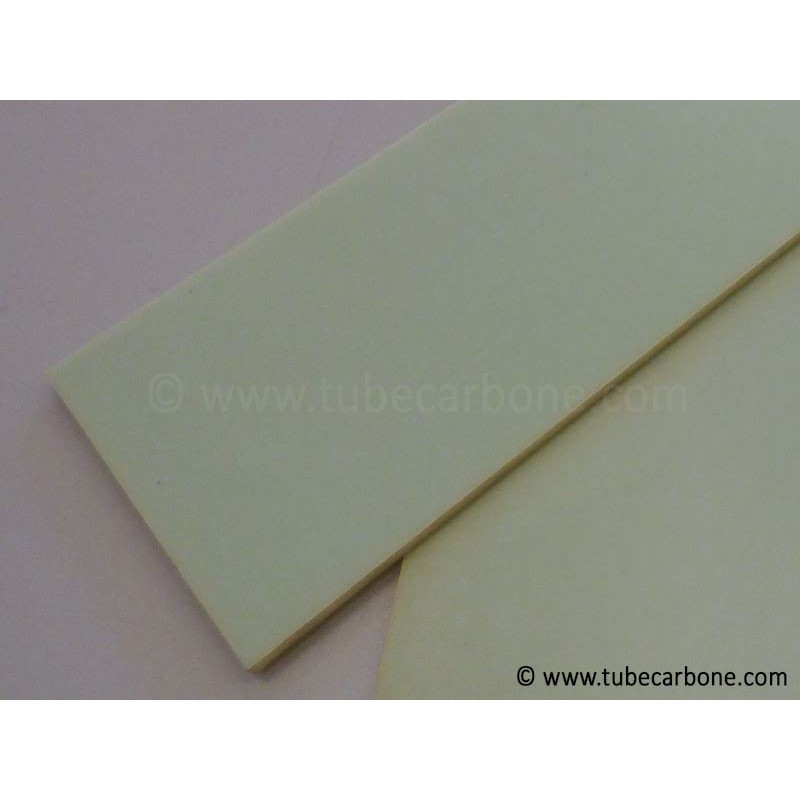

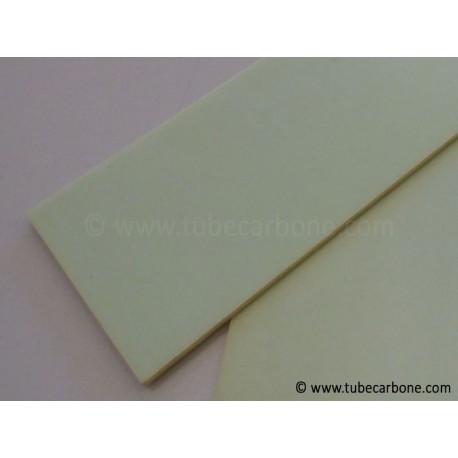

Glass fiber plate 3mm

New product

E glass epoxy plate.
High quality: high pressure pre-preg moulding



More details

3985

236,04 € tax excl.

:

More info

3 formats on the shop.
Specific cutting possible (transmit your layouts).

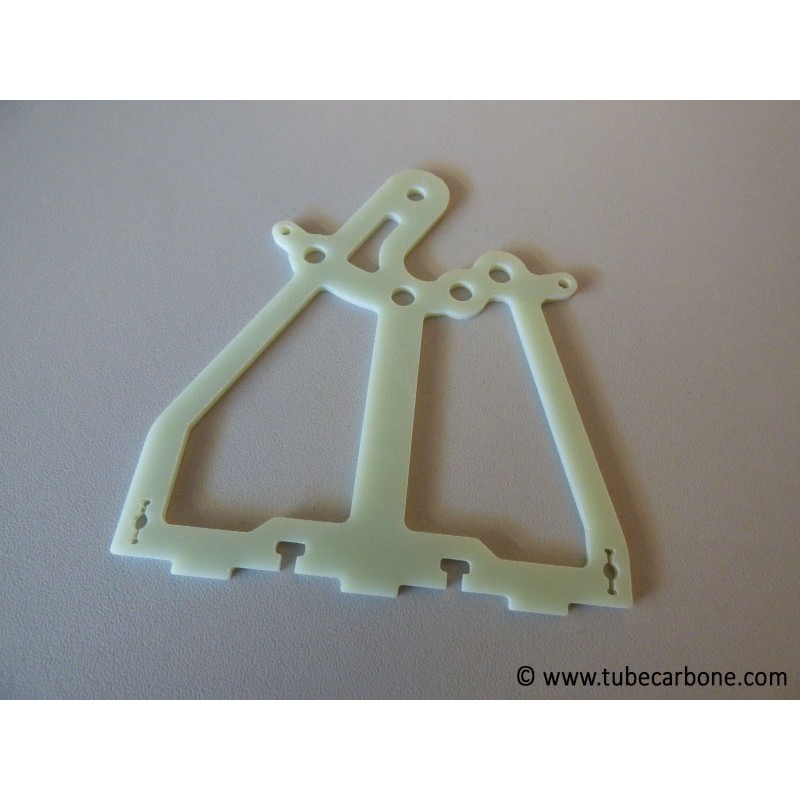

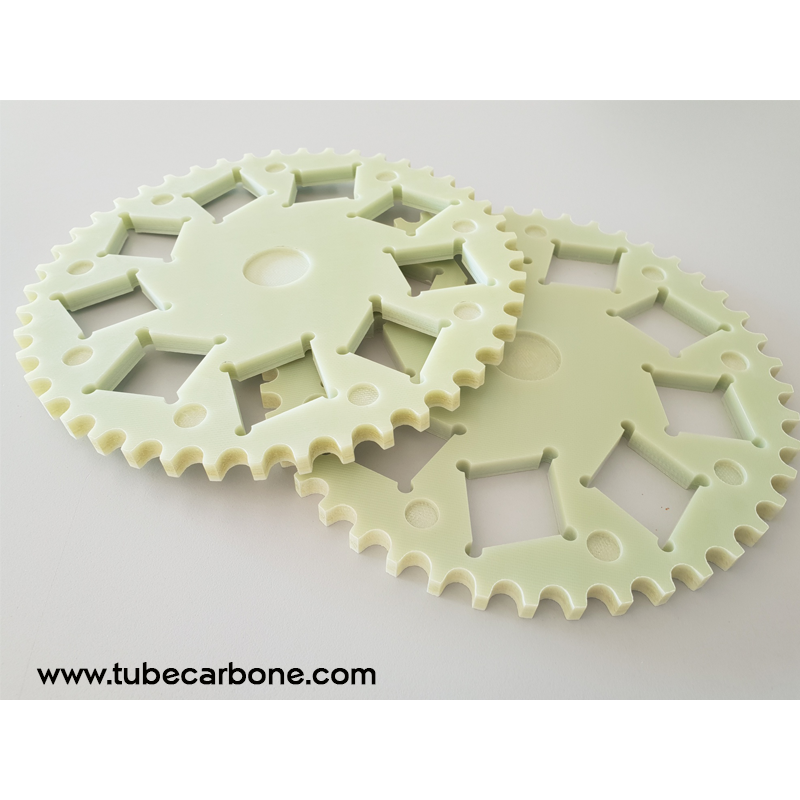

Milling and drilling under request.

Data sheet

Max temperature : 180°C
Mechanical stress : surface pressure
Flexural modulus : 35 GPa
Composite stacking : 0°/90° fibers
Process : High pressure moulding
Thickness : 3mm
Material : E Glass
Density: 2 g/cm3
Thickness tolerance : +/-0,25mm
Color : Natural
Thermal expansion: 1,3 x 10E-5
Flexural strenght: 350 MPa
Tensile strenght: 240 MPa
Compression strenght: 500 MPa
