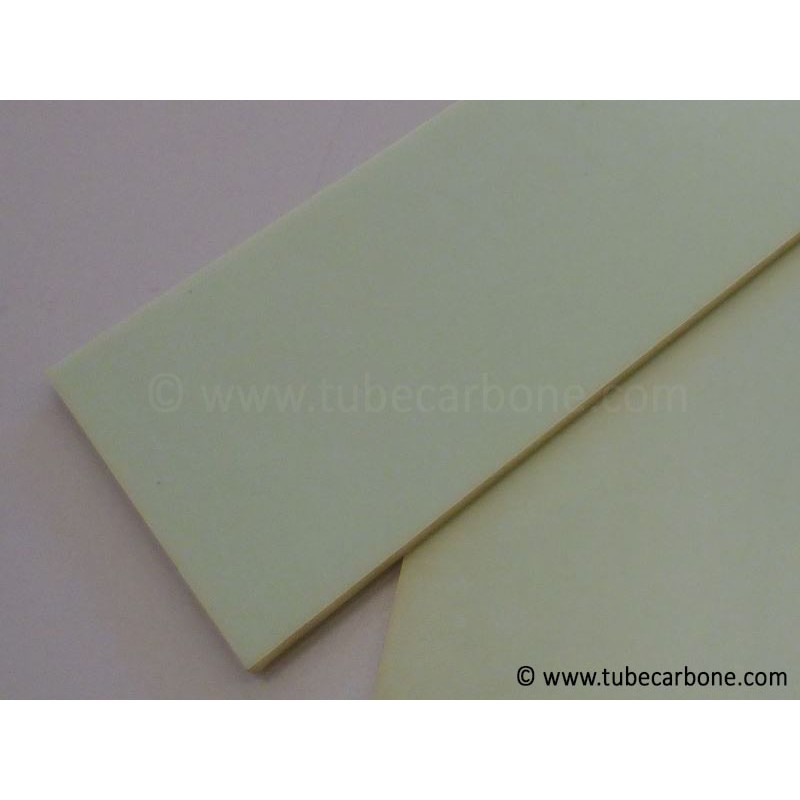

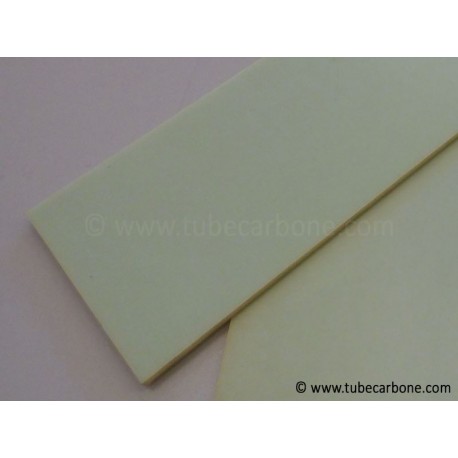

Glass fiber plate 1,0mm
New product
E glass epoxy plate.
High quality: high pressure pre-preg moulding
More info
3 formats on the shop.
Specific cutting possible (transmit your layouts).
Milling and drilling under request.
Data sheet
| Max temperature : | 180°C |
| Mechanical stress : | surface pressure |
| Flexural modulus : | 35 GPa |
| Composite stacking : | 0°/90° fibers |
| Process : | High pressure moulding |
| Thickness : | 1mm |
| Material : | E Glass |
| Density: | 2 g/cm3 |
| Thickness tolerance : | +/-0,25mm |
| Color : | Natural |
| Thermal expansion: | 1,3 x 10E-5 |
| Flexural strenght: | 350 MPa |
| Tensile strenght: | 240 MPa |
| Compression strenght: | 500 MPa |
