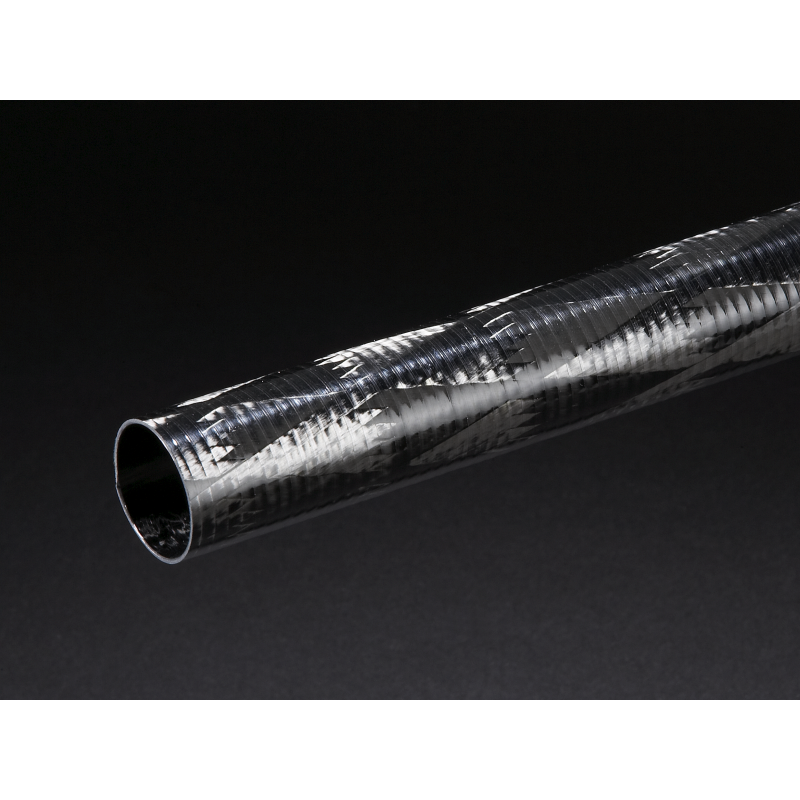

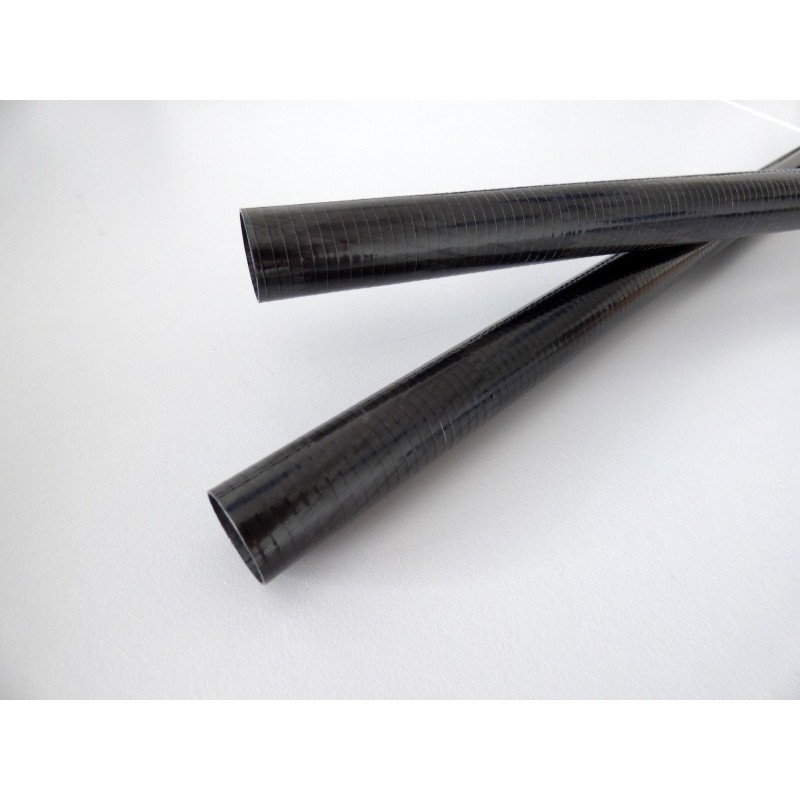

Carbon tube 27x28mm Technical 6K
New product
Carbon tube EXTRA LIGHT made of filament winding.
Carbon fiber 6K HR and epoxy resin.
1999
Produit en stock.
More info
Thin tube (about 0,6mm thickness).
Tube extra light tube have a good flexual resistance and a good resistance at shock and at crushing (Unlike wrapped light tubes, they breack under the pressure of the fingers).
They keep the flexibility og filament winding process: we can change the thickness or the angles of the layers if necessary.
Warning: tubes have +0,2mm on external diameter (ex: the 10x11 is about 11,2mm). POSSIBLE to have tube with a thinner external diameter -0,2mm (contact us)
The main advantage for the customer: we can change the thickness or the angles of the layers if necessary.
Specific cutting or milling possible.
Data sheet
| Max temperature : | 130°C |
| Mechanical stress : | Flexural |
| Flexural modulus : | 70 GPa |
| Composite stacking : | Fibres à 90° et 15° |
| Process : | Filament Winding |
| Internal diameter : | 027 |
| Thickness : | 0,6mm |
| Material : | Carbone HR 6K |
| Cosmetics : | Grip surface |
| Density: | 1,6 g/cm3 |
| Outside diameter tolerance : | +/- 0,15mm |
| Impact resistance | ++ |
