New product

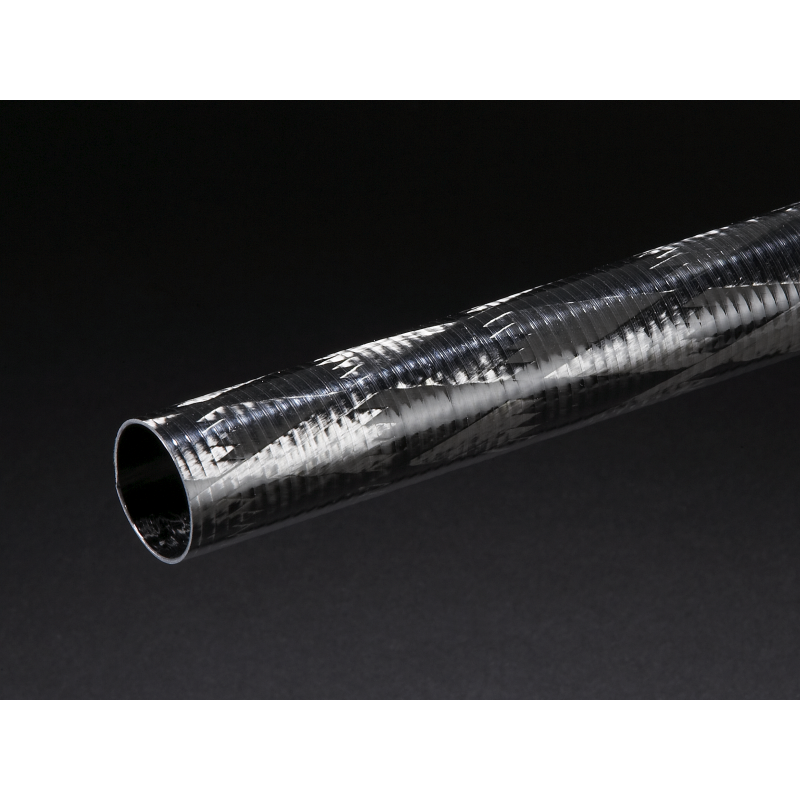

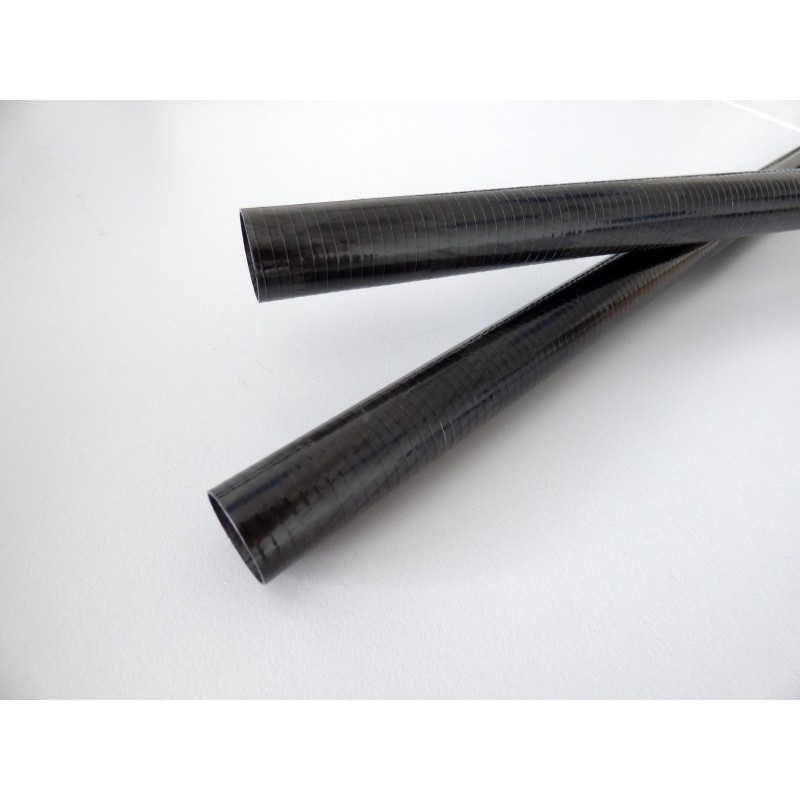

Carbon tube EXTRA LIGHT made of filament winding.
Carbon fiber 6K HR and epoxy resin.
Warning: Last items in stock!
Availability date:
Thin tube (about 0,6mm thickness).
Tube extra light tube have a good flexual resistance and a good resistance at shock and at crushing (Unlike wrapped light tubes, they breack under the pressure of the fingers).
They keep the flexibility og filament winding process: we can change the thickness or the angles of the layers if necessary.
Warning: tubes have +0,2mm on external diameter (ex: the 10x11 is about 11,2mm). POSSIBLE to have tube with a thinner external diameter -0,2mm (contact us)
The main advantage for the customer: we can change the thickness or the angles of the layers if necessary.
Max temperature : | 130°C |
Mechanical stress : | Flexural |
Flexural modulus : | 70 GPa |
Composite stacking : | Fibres à 90° et 15° |
Process : | Filament Winding |
Internal diameter : | 014 |
Thickness : | 0,6mm |
Material : | Carbone HR 6K |
Cosmetics : | Grip surface |
Density: | 1,6 g/cm3 |
Outside diameter tolerance : | +/- 0,15mm |
Impact resistance | ++ |
