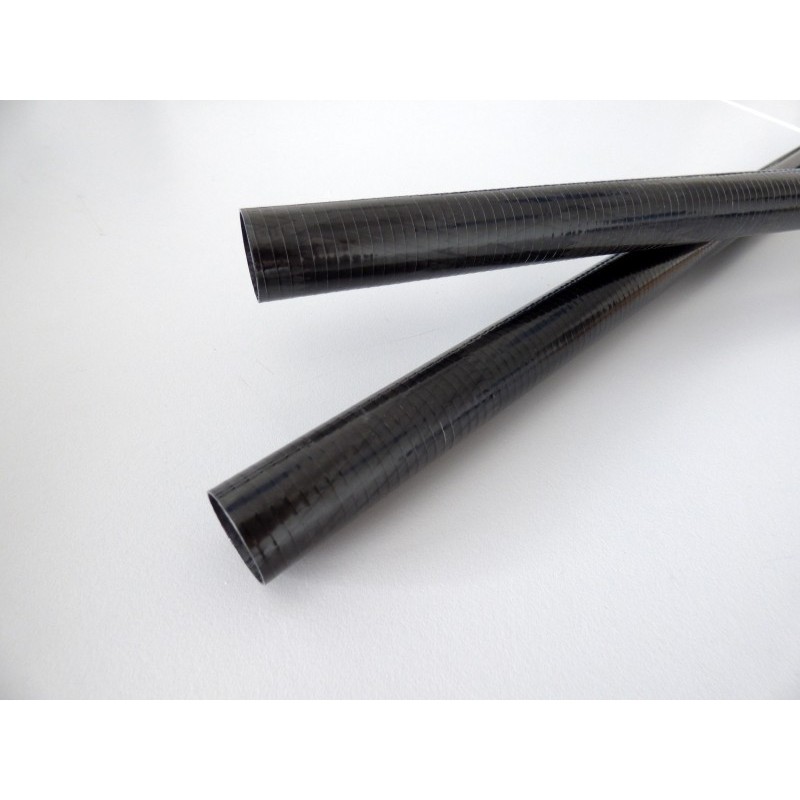

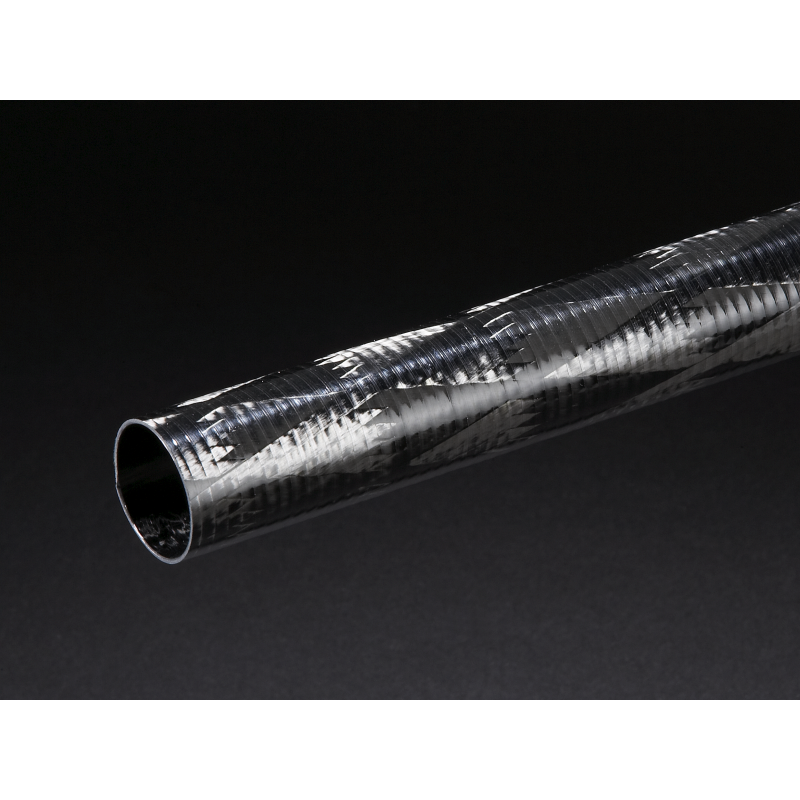

Carbon tube 12x13mm Technical 6K

New product

Carbon tube EXTRA LIGHT made of filament winding.

Carbon fiber 6K HR and epoxy resin.

More details

1997

53,24 €

:
Quantity Discount You Save
4 4,80 € Up to 19,20 €

More info

Thin tube (about 0,6mm thickness).

Tube extra light tube have a good flexual resistance and a good resistance at shock and at crushing (Unlike wrapped light tubes, they breack under the pressure of the fingers).

They keep the flexibility og filament winding process: we can change the thickness or the angles of the layers if necessary.

Warning: tubes have +0,2mm on external diameter (ex: the 10x11 is about 11,2mm). POSSIBLE to have tube with a thinner external diameter -0,2mm (contact us)

The main advantage for the customer: we can change the thickness or the angles of the layers if necessary.

Specific cutting or milling possible.

Data sheet

Max temperature : 130°C
Mechanical stress : Flexural
Flexural modulus : 70 GPa
Composite stacking : Fibres à 90° et 15°
Process : Filament Winding
Internal diameter : 012
Thickness : 0,6mm
Material : Carbone HR 6K
Cosmetics : Grip surface
Density: 1,6 g/cm3
Outside diameter tolerance : +/- 0,15mm
Impact resistance ++
