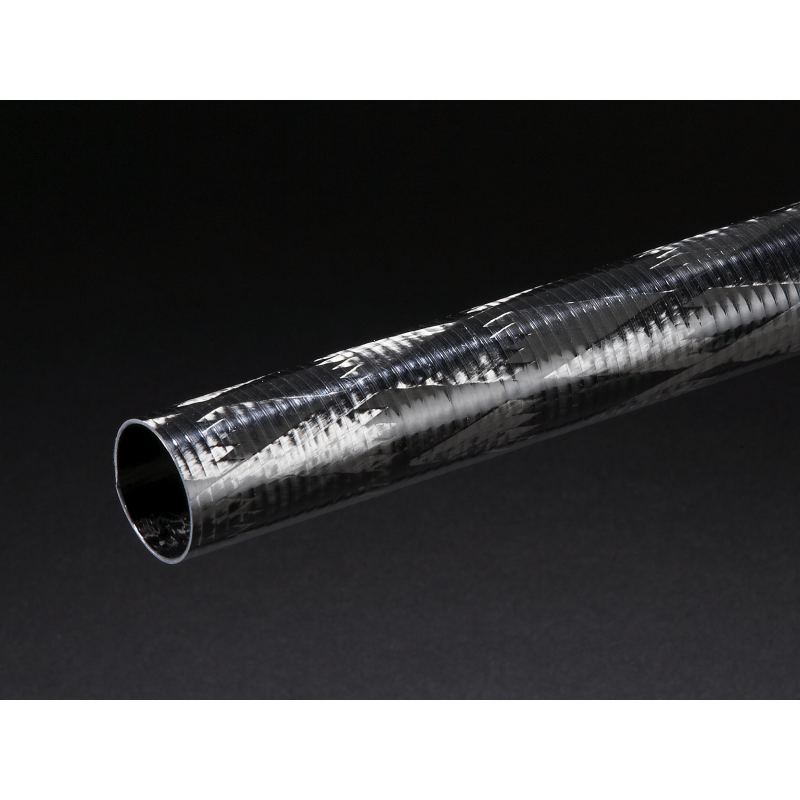

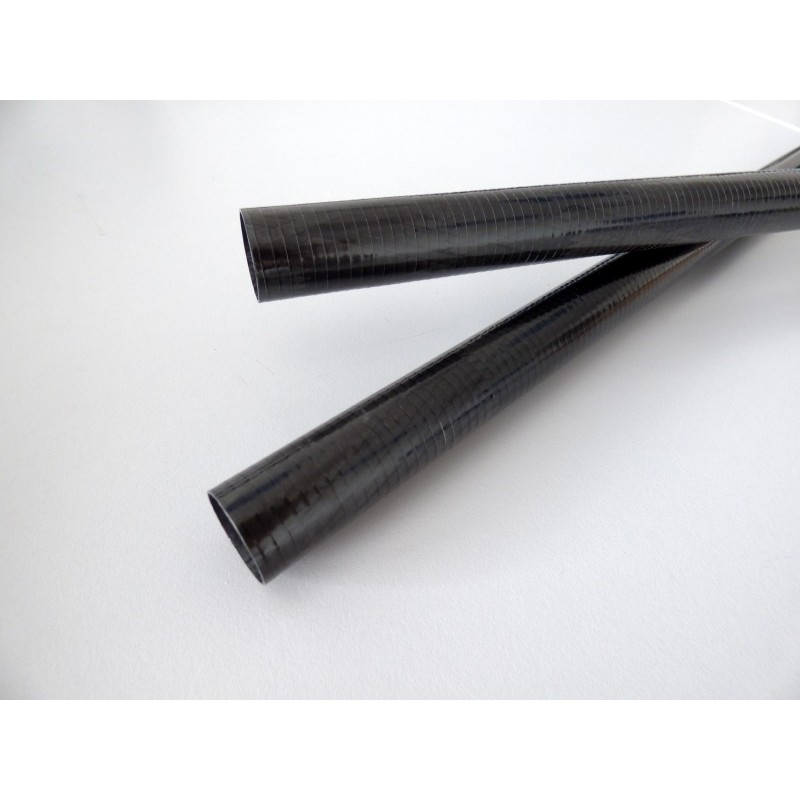

Carbon tube EXTRA LIGHT made of filament winding.
Carbon fiber 6K HR and epoxy resin.
Warning: Last items in stock!
Thin tube (about 0,6mm thickness).
Tube extra light tube have a good flexual resistance and a good resistance at shock and at crushing (Unlike wrapped light tubes, they breack under the pressure of the fingers).
They keep the flexibility og filament winding process: we can change the thickness or the angles of the layers if necessary.
Warning: tubes have +0,2mm on external diameter (ex: the 10x11 is about 11,2mm). POSSIBLE to have tube with a thinner external diameter -0,2mm (contact us)
The main advantage for the customer: we can change the thickness or the angles of the layers if necessary.
|Max temperature :||130°C|
|Mechanical stress :||Flexural|
|Flexural modulus :||70 GPa|
|Composite stacking :||Fibres à 90° et 15°|
|Process :||Filament Winding|
|Internal diameter :||010|
|Material :||Carbone HR 6K|
|Cosmetics :||Grip surface|
|Outside diameter tolerance :||+/- 0,15mm|
