Carbon tube 40x45mm Technical
New product

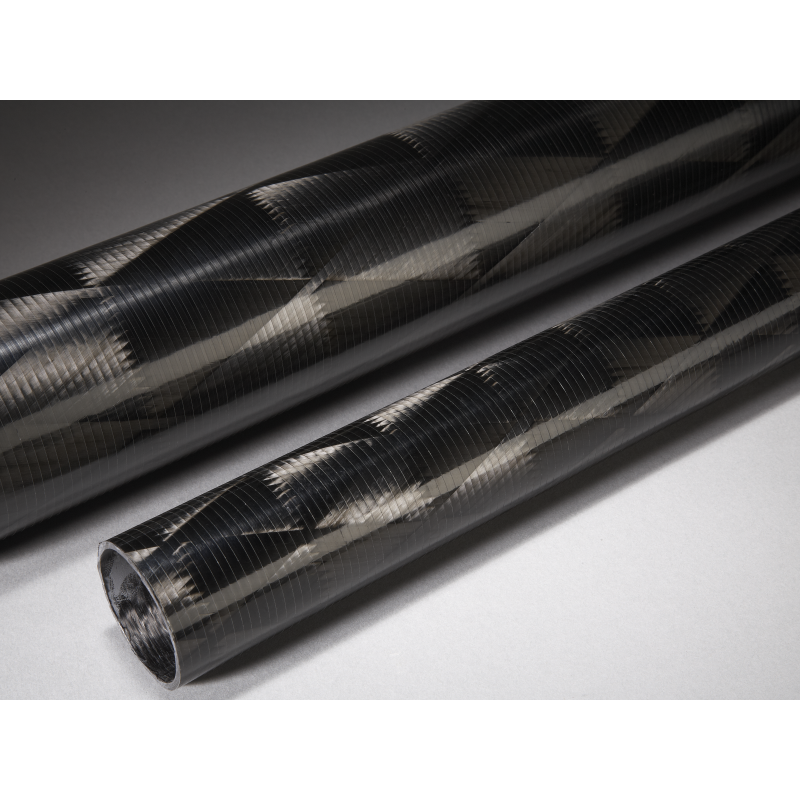

Filament wound carbon tube using HR carbon fiber and epoxy resin.
The one tube which can be adapted to a specific thickness, or a specific load case.
No sufficient stock for these quantities. Manufacturing time 12 days
More info
Technical tube with flexural performance lower than Pullwinding tubes, but recommanded when oher stresses on the tube: torsionnal or pressure for example.
This tube can support 130°C temperature (Pullwinding 80°C)
These tubes are not in stock but we have a very short manufacturing time: 10 to 12 days
The main advantage for the customer: we can change the thickness or the angles of the layers if necessary.
Data sheet
| Max temperature : | 130°C |
| Diameters tolerance : | +/-0,20mm |
| Mechanical stress : | Flexural / Torsionnal / Compression stress |
| Flexural modulus : | 85 GPa |
| Composite stacking : | Fibers 90° - 20° - 30° |
| Process : | Filament Winding |
| Internal diameter : | 042 |
| Thickness : | 1mm |
| Material : | HS Carbon fiber |
| Cosmetics : | 30° fiber - Grip surface |
| Density: | 1,6 g/cm3 |
