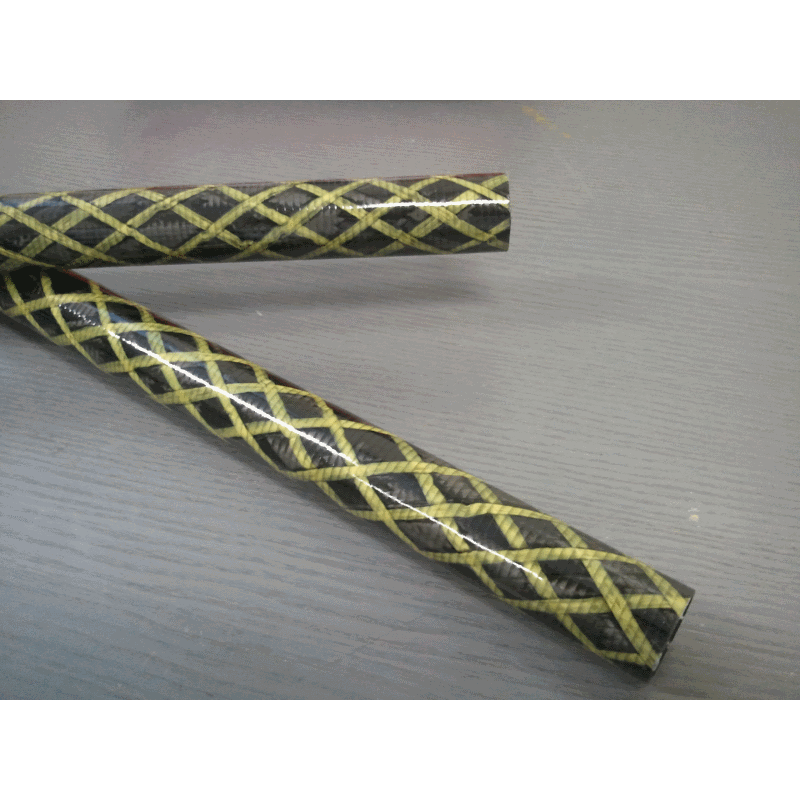

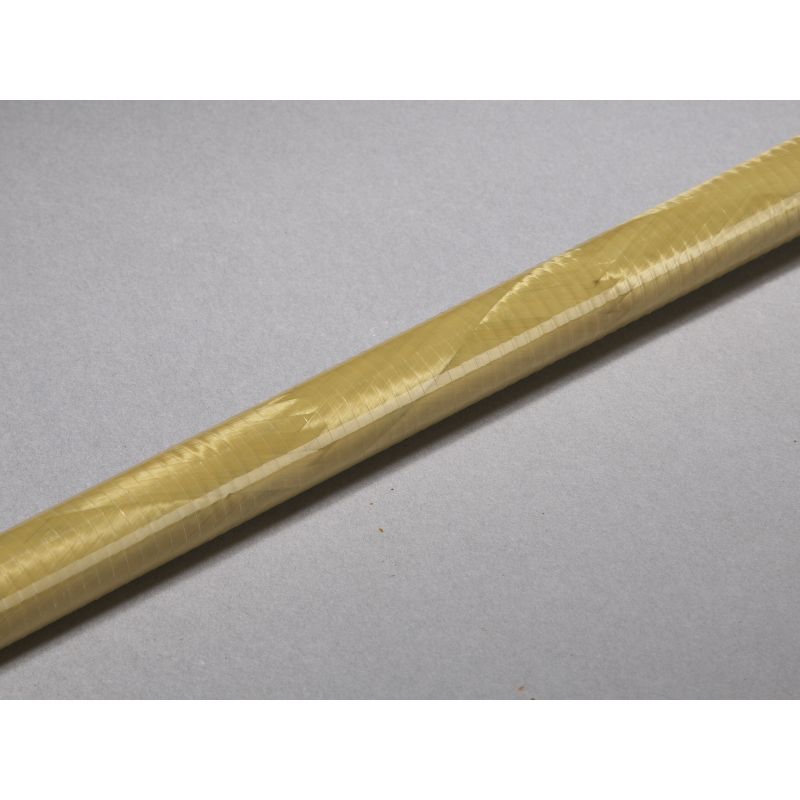

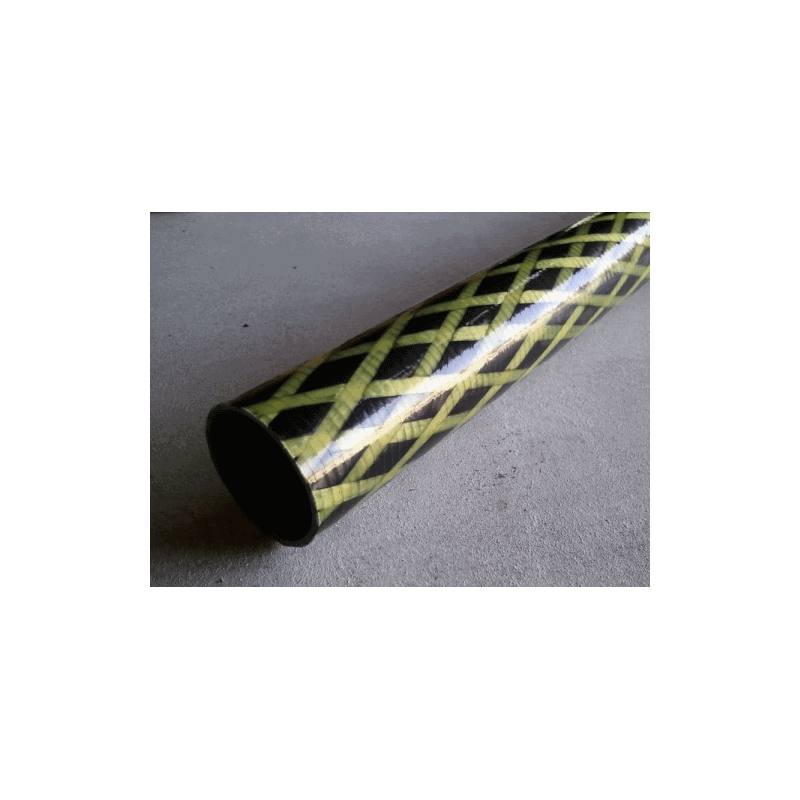

Carbon tube 29x31mm Technical aramid reinforced
New product
Filament wound carbon tube using HR carbon fiber and epoxy resin.
External aramid reinforcement 30% or 100%
Items on stock
More info
Main advantages:
- Kevlar design and safety when failure
- Good impact resistance
IMPORTANT: the aramid layer increase the annonced diameter:
- around 0,5mm for 30% kevlar
- around 1,5mm for 100% kevlar
For example, when you see Carbon tube 12x14 Technical aramid reinforced: the outside diameter is:
- 14,5mm for 30% Kevlar
- 15,5 mm for 100% kevlar
Data sheet
| Max temperature : | 130°C |
| Diameters tolerance : | +/-0,20mm |
| Mechanical stress : | Flexural / Torsionnal / Compression stress |
| Flexural modulus : | 70 GPa |
| Composite stacking : | Fibers 90° and 20° |
| Process : | Filament Winding |
| Internal diameter : | 029 |
| Thickness : | 1mm |
| Material : | HS Carbon fiber |
| Cosmetics : | Grip surface |
| Density: | 1,6 g/cm3 |
| Impact resistance | +++ |
