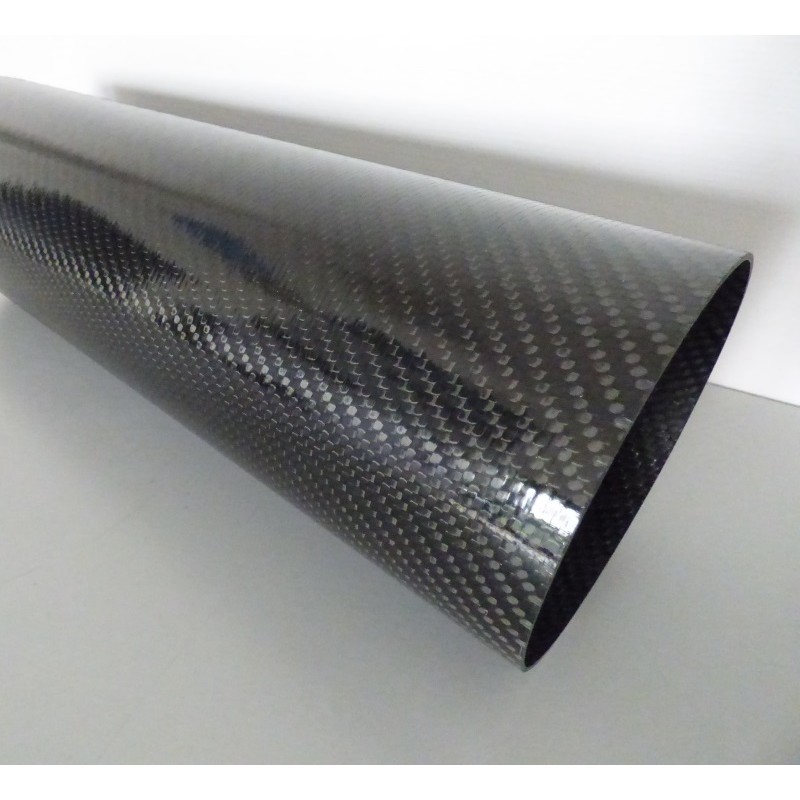

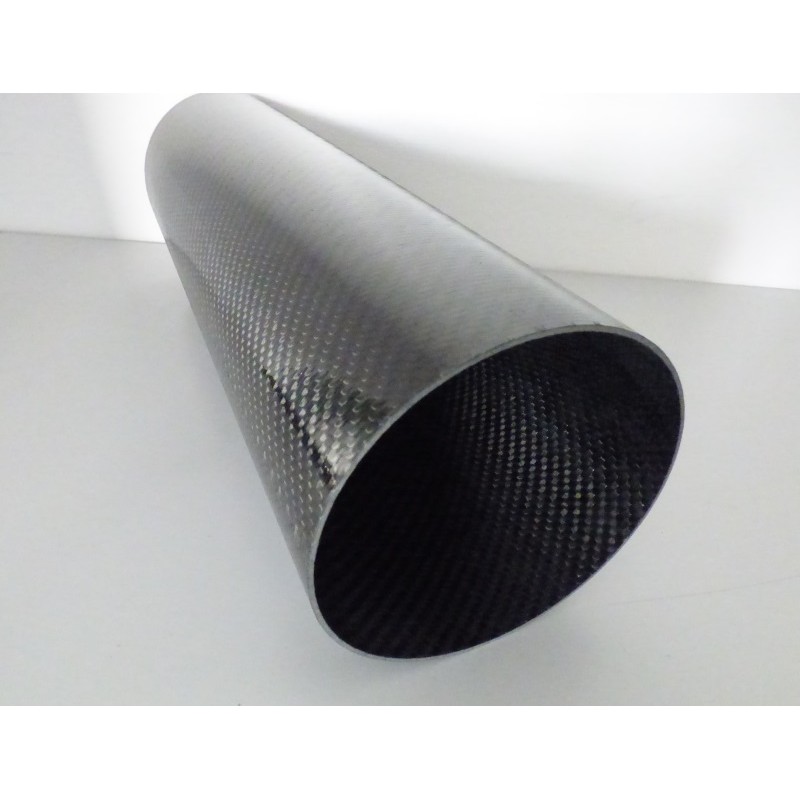

Carbon tube 150x155mm Wrapped non polished

New product

Wrapped carbon tube 150X155mm non polished.

More details

4000

Short production time: 8 to 10 days.

1 239,37 € tax excl.

:
Quantity Discount You Save
4 5% Up to 247,87 €

More info

Tolerance +/- 0.1mm on internal diameter.

Tolerance +/- 0.2mm on external diameter.

Unidirectional carbon fiber core + twill carbon fabric wrapped on the outside and inside.

Lenghts 1000mm and 2000mm

Technical applications: Flexural stress and tensile strength.

Specific cutting, or milling possible, contact us.

Data sheet

Max temperature : 120°C
Mechanical stress : Flexural/ Stress
Flexural modulus : 110 GPa
Composite stacking : Twill 75% at 0° - 25% at 90°
Process : Wrapping
Internal diameter : 150
Thickness : 2,5mm
Material : HS Carbon fiber
Cosmetics : Rough surface. Grip due to process
Density: 1,6 g/cm3
Inside diameter tolerance : +/-0.1mm
Outside diameter tolerance : +/-0.2mm
