Carbon tube 100x110mm wrapped Rectification

New product

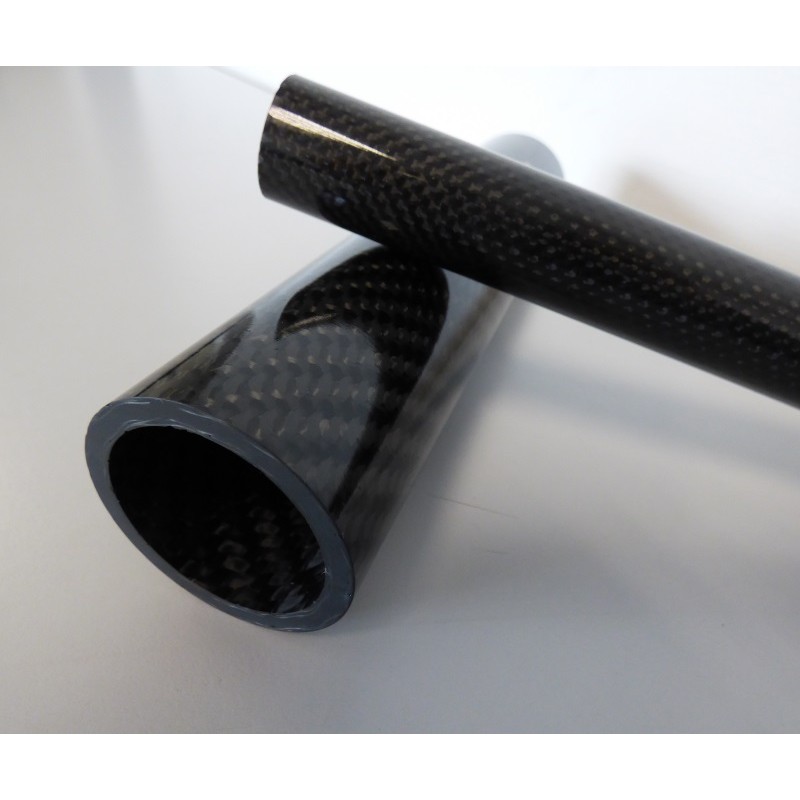

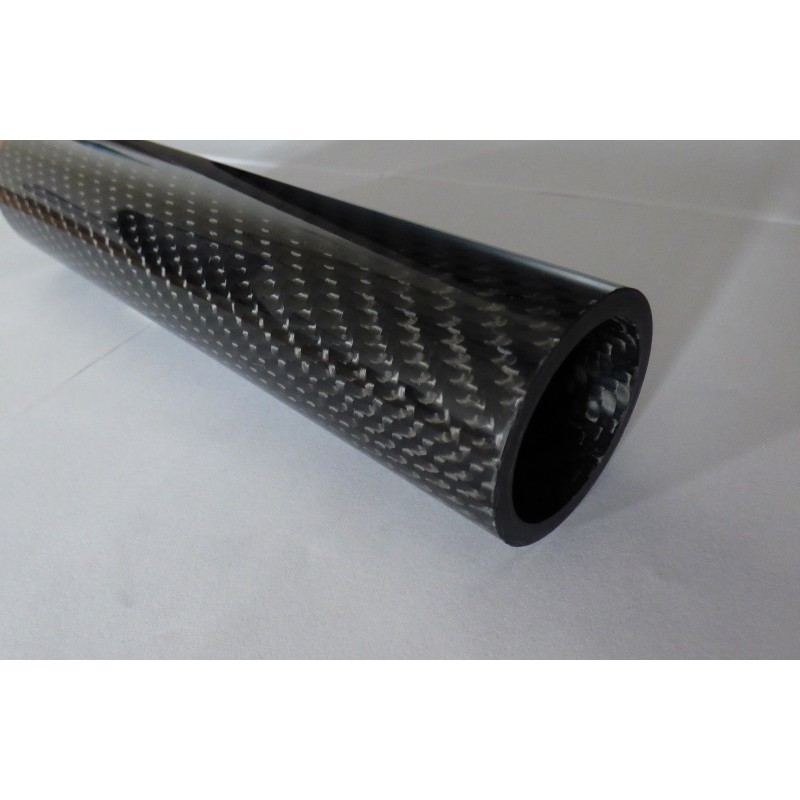

Wrapped carbon tube 100X110mm rectified varnished.

Good tolerance and very nice tubes!

More details

4000

Short production time: 8 to 10 days.

1 448,10 € tax excl.

:
Quantity Discount You Save
4 5% Up to 289,62 €

More info

Tolerance +/- 0.05mm on internal diameter.

Tolerance +/- 0.1mm on external diameter.

Unidirectional carbon fiber core + twill carbon fabric wrapped on the outside and inside.

Available from 5mm up to 115mm.

Lenghts 1000mm and 2000mm

Technical applications: Flexural stress and tensile strength.

Main advantages: Tolerance and smooth surface.

Specific cutting, or milling possible, contact us.

Data sheet

Max temperature : 120°C
Mechanical stress : Flexural/ Stress
Flexural modulus : 110 GPa
Composite stacking : Twill 75% at 0° - 25% at 90°
Process : Wrapping
Internal diameter : 100
Thickness : 5mm
Material : HS Carbon fiber
Cosmetics : Smooth surface and fabric look
Density: 1,6 g/cm3
Inside diameter tolerance : +/-0,05mm
Outside diameter tolerance : +/-0.1 mm
