Carbon pole 22x25mm Standard
New product
Carbon pole with 22x25mm pullwinding carbon tubes, length 1000mm or 2000mm.
7997
Items on stock
More info

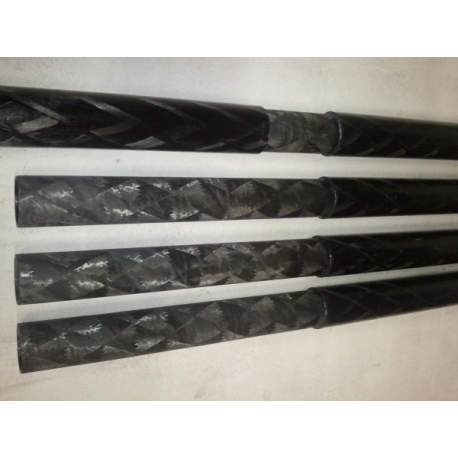

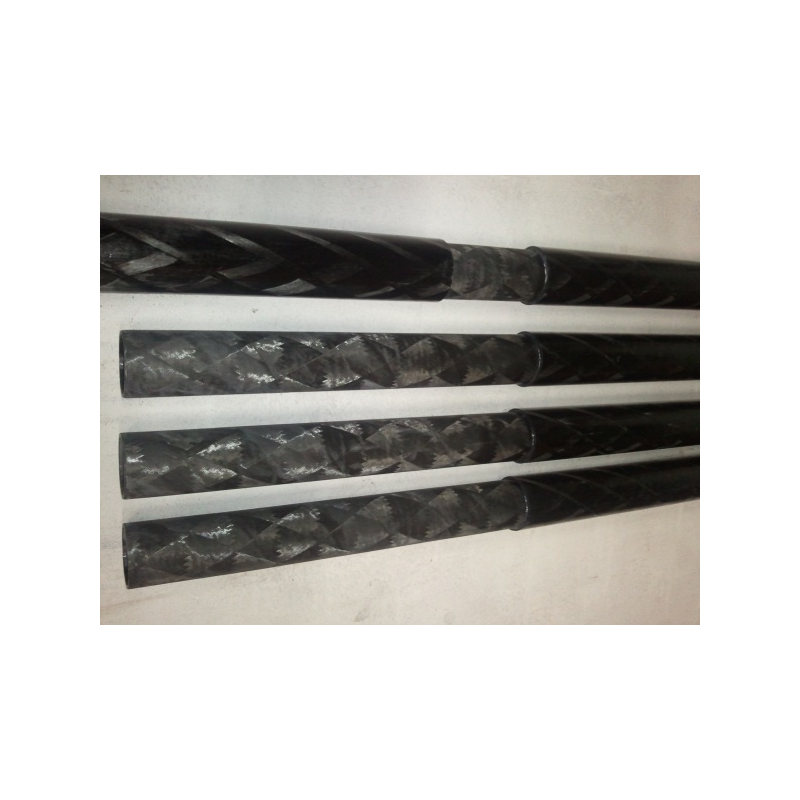

Bonded sleeves (20x22mm) made in Pullwinding.
Length of each element with sleeve: 1125mm (pole 4m) and 2250mm (pole 6m)
4m carbon pole includes 3 elements with sleeves and one single element 22x25x1000mm
6m carbon pole includes 2 elements with sleeves and one single element 22x25x2000mm.
BE CAREFULL : carbon is current conductor: use away from power lines.
See insulating glass fiber pole if this criterion is important.

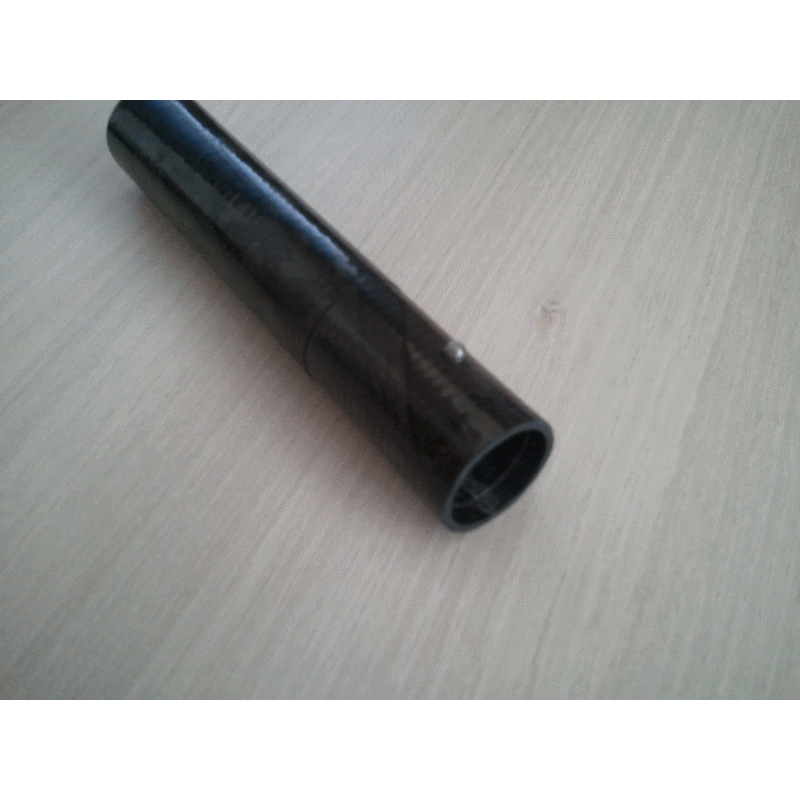

Available version with lock.
Data sheet
| Max temperature : | 80°C |
| Diameters tolerance : | +/-0,3mm |
| Mechanical stress : | Flexural/ Stress |
| Flexural modulus : | 110 GPa |
| Composite stacking : | 85% UD+external layer 37°+internal 90° |
| Process : | Pullwinding |
| Internal diameter : | 022 |
| Thickness : | 1,5mm |
| Material : | HS Carbon fiber |
| Cosmetics : | Smooth - 30° fiber |
| Density: | 1,6 g/cm3 |
