Carbon pole 27x30mm Standard
New product

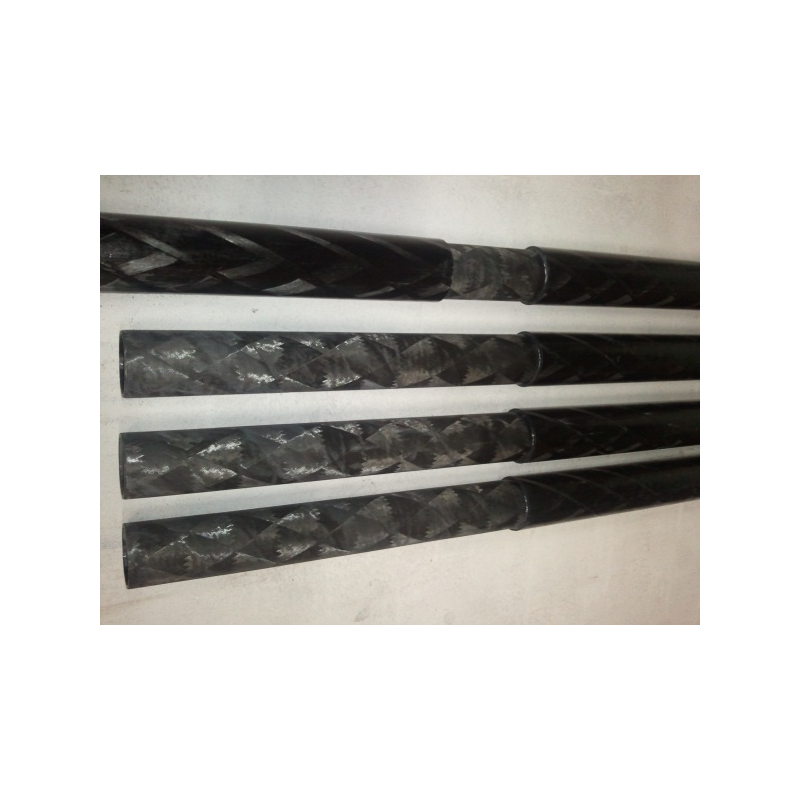

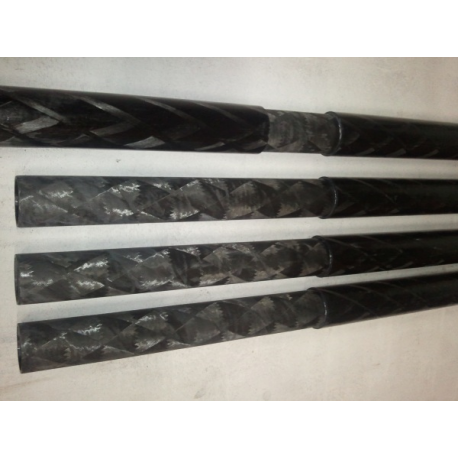

Carbon pole with 27x30x2000mm pullwinding carbon tubes.
Items on stock
More info

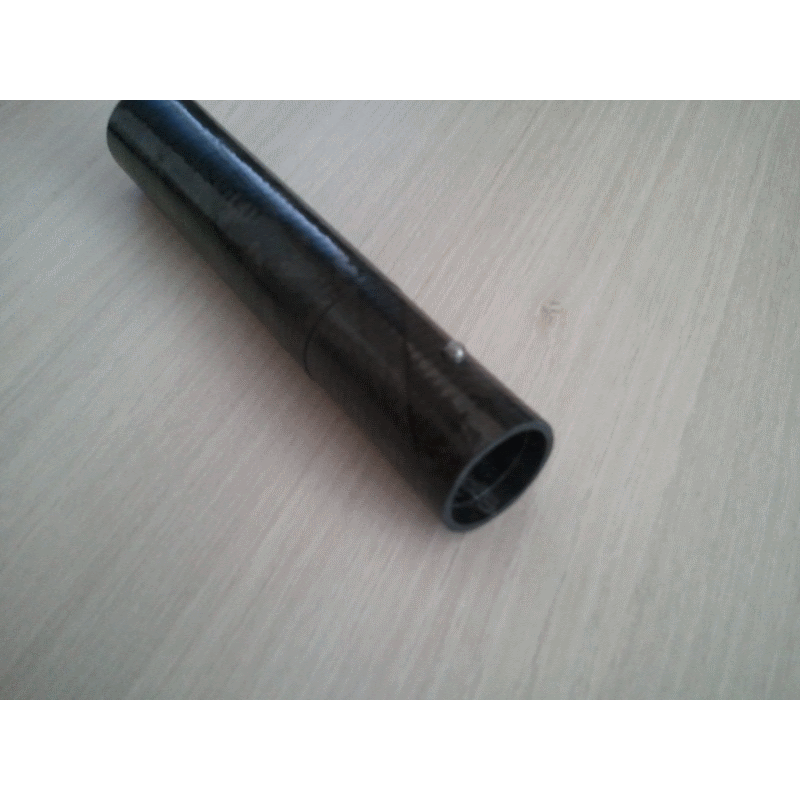

Bonded sleeves (24x27mm) made in filament winding : strength.
Length of each element with sleeve: 1125mm (pole 4m) and 2250mm (poles 6m and 8m)
4m carbon pole includes 3 elements with sleeves and one single element 27x30x1000mm
6m carbon pole includes 2 elements with sleeves and one single element 27x30x2000mm
8m carbon pole includes 3 elements with sleeves and one single element 27x30x2000mm.
BE CAREFULL : carbon is current conductor: use away from power lines.
See insulating glass fiber pole if this criterion is important.
Available version with lock.
Data sheet
| Max temperature : | 80°C |
| Diameters tolerance : | +/-0,3mm |
| Mechanical stress : | Flexural/ Stress |
| Flexural modulus : | 110 GPa |
| Composite stacking : | 85% UD+external layer 37°+internal 90° |
| Process : | Pullwinding |
| Internal diameter : | 027 |
| Thickness : | 1,5mm |
| Material : | HS Carbon fiber |
| Cosmetics : | Smooth - 30° fiber |
| Density: | 1,6 g/cm3 |
