Carbon tube 12x18mm Technical View larger

Carbon tube 20x40x875mm Technical

CFWTC20X40X875BA

New product

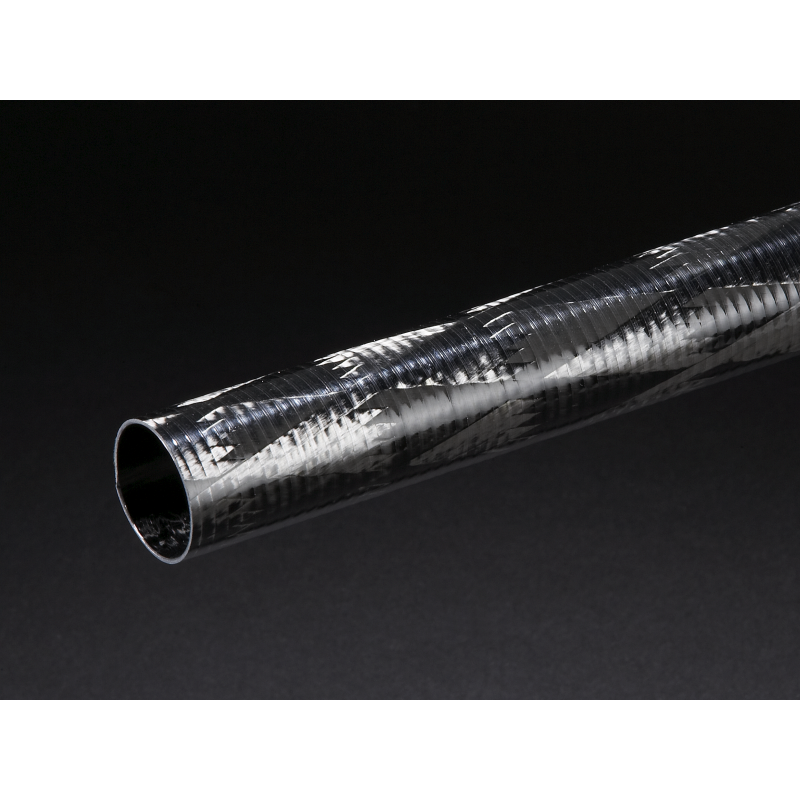

Filament wound carbon tube using HR carbon fiber and epoxy resin.
The one tube which can be adapted to a specific thickness, or a specific load case.

More details

1 Item

Warning: Last items in stock!

257,23 €

:

342,97 €

More info

Technical tube with flexural performance lower than Pullwinding tubes, but recommanded when oher stresses on the tube: torsionnal or pressure for example.

This tube can support 130°C temperature (Pullwinding 80°C)

Only 1 available tube.



Data sheet

Max temperature : 130°C
Mechanical stress : Flexural / Torsionnal / Compression stress
Flexural modulus : 85 GPa
Composite stacking : Fibres à 90° et 15°
Process : Filament Winding
Internal diameter : 020
Thickness : 10mm
Material : HS Carbon fiber
Cosmetics : Grip surface
Density: 1,6 g/cm3
Outside diameter tolerance : +/- 0,15mm
