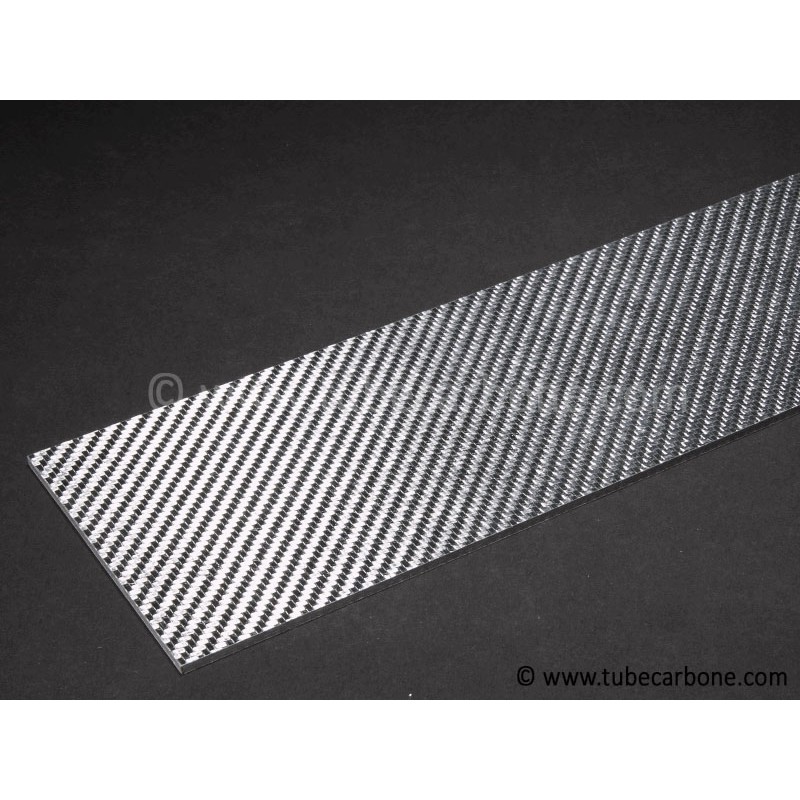

Hybrid plate 1mm Thick View larger

Hybrid plate 3mm Thick

New product

High quality pre-preg/epoxy plate
Carbon core and glassfiber cover (aluminium look)
Milling and water-jet cutting possible

More details


273,46 €


More info

Suitable if your carbon plate need abrasive strenght

Material :

HS carbon fiber T 700 Type.
12K carbon Twill fabric core
3K glass Twill fabric finish
Epoxy resin Tg 120°C
Fiber volume ratio Vf= 60%
Density : 1,55 g/cm3
Thickness 1mm to 10mm on the shop (up to 20mm under request)

Process :
Pre-preg fabrics compression

Mechanical properties :
Interlaminar shear strength: 67 MPa

 Under request :
- Peel ply finish (for gluing)
- Grinded surface (better tolerance)
- Milling operation (regarding your layouts) or water-jet cutting


Data sheet

Max temperature : 120°C
Mechanical stress : surface pressure
Flexural modulus : 60 GPa
Composite stacking : 0°/90° fibers
Process : High pressure moulding
Thickness : 3mm
Material : HS Carbon + E Glass fiber
Cosmetics : Twill fabric
Density: 1,6 g/cm3
Thickness tolerance : +/-0,25mm
Color : Aluminium
Thermal expansion: 3,8 x 10E-6
Flexural strenght: 600 Mpa
Tensile strenght: 550 MPa
