Glass fiber tube 28x32mm Technical View larger

Glass fiber tube 50X52mm Technical

New product

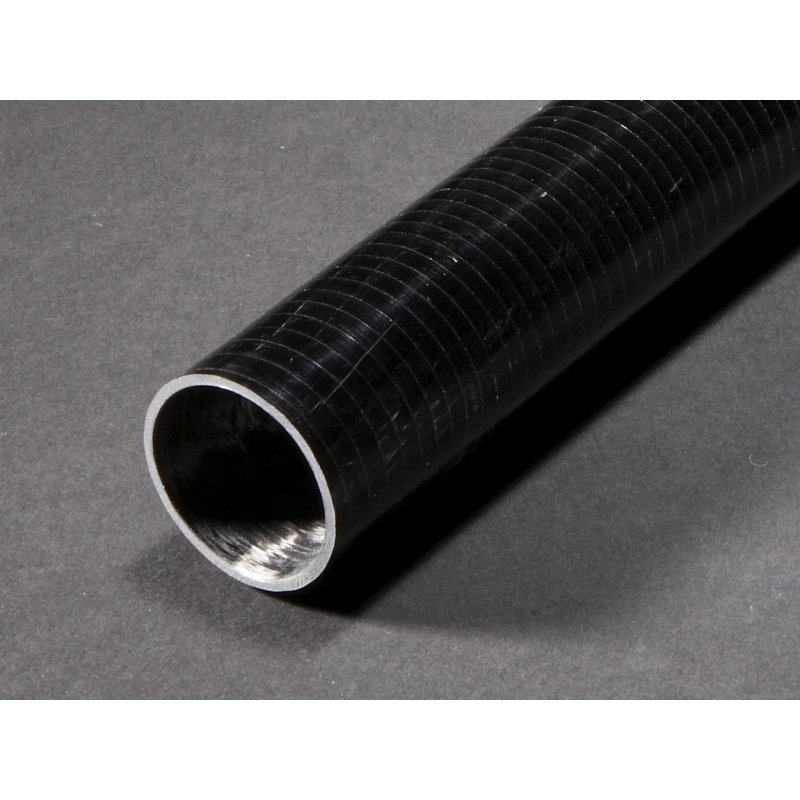

Filament wound glass fiber tube.
Technical applications: pressure, compression or torsionnal stress ...
We can help you to design your tube

More details

11993

75,37 €

:

More info

E glass black or red.
Filament winding allows specific applications: insulation, inner pressure etc...
Specific fiber orientations can be realized regarding your load cases.
Cutting operations possible

Data sheet

Max temperature : 130°C
Diameters tolerance : +/-0,20mm
Mechanical stress : Flexural / Torsionnal / Compression stress
Flexural modulus : 35 GPa
Composite stacking : Fibers 90° and 20°
Process : Filament Winding
Internal diameter : 050
Thickness : 1mm
Material : E Glass
Cosmetics : Grip surface
Density: 2 g/cm3
Color : Black or red
