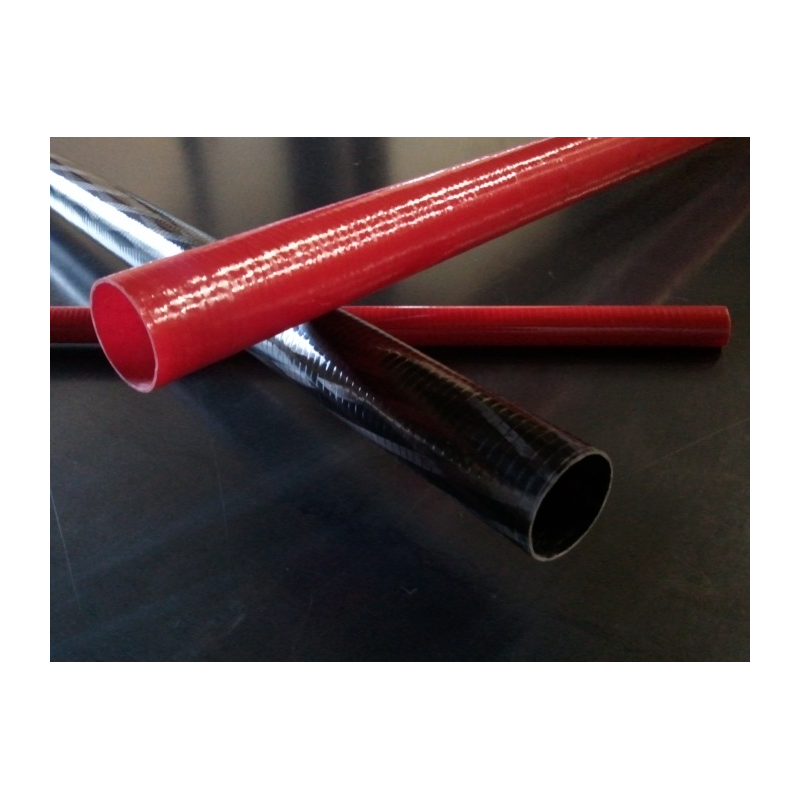

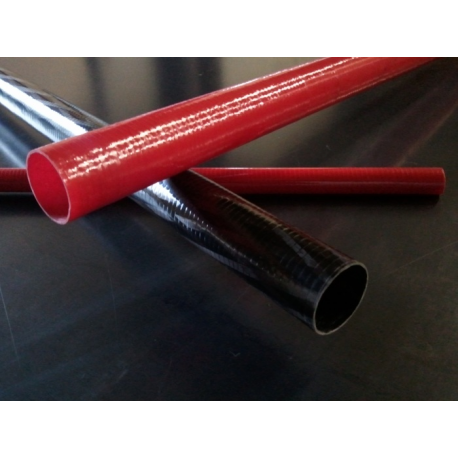

Glass fiber tube 36x40mm Technical
New product
Filament wound glass fiber tube.
Technical applications: pressure, compression or torsionnal stress ...
We can help you to design your tube
More info
E glass black or red.
Filament winding allows specific applications: insulation, inner pressure etc...
Specific fiber orientations can be realized regarding your load cases.
Cutting operations possible
Data sheet
| Max temperature : | 130°C |
| Diameters tolerance : | +/-0,20mm |
| Mechanical stress : | Flexural / Torsionnal / Compression stress |
| Flexural modulus : | 45 GPa |
| Composite stacking : | Fibers 90° - 20° - 30° |
| Process : | Filament Winding |
| Internal diameter : | 036 |
| Thickness : | 2mm |
| Material : | E Glass |
| Cosmetics : | 30° fiber - Grip surface |
| Density: | 2 g/cm3 |
| Color : | Black or red |
