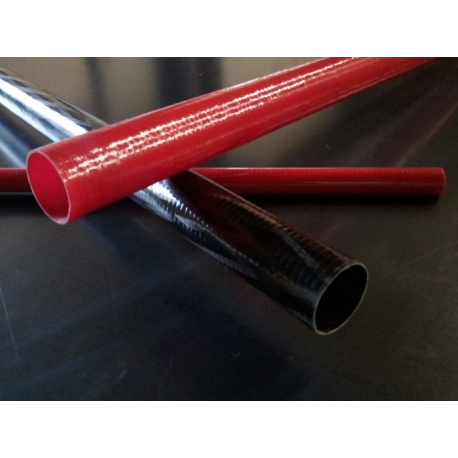

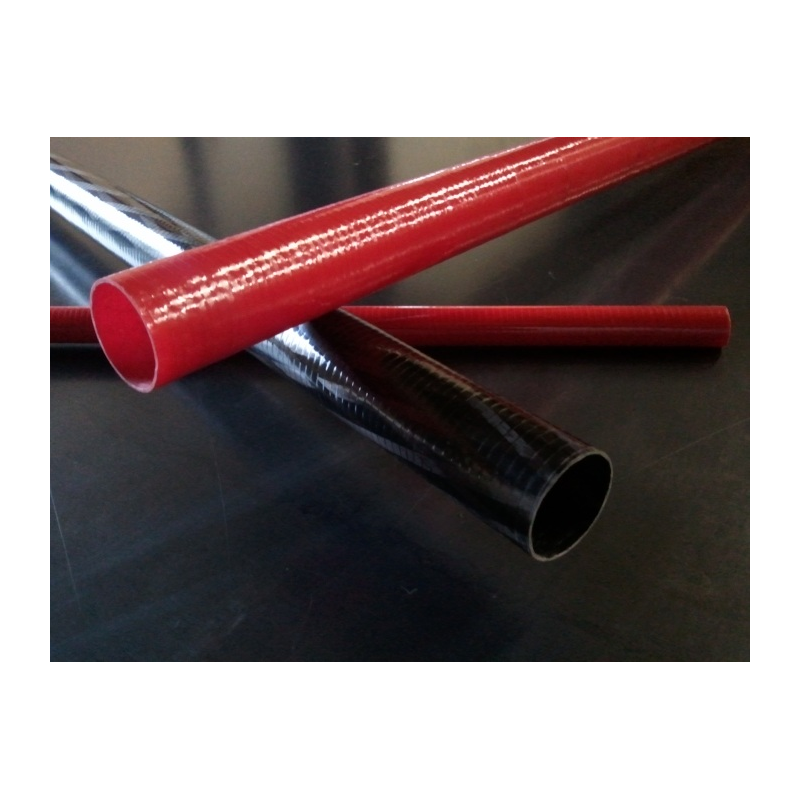

Glass fiber tube 12x15mm Technical View larger

Glass fiber tube 16x18mm Technical

New product

Filament wound glass fiber tube.
Technical applications: pressure, compression or torsionnal stress ...
We can help you to design your tube

More details

4000

51,64 €

:

More info

E glass black or red.
Filament winding allows specific applications: insulation, inner pressure etc...
Specific fiber orientations can be realized regarding your load cases.
Cutting operations possible

Data sheet

Max temperature : 130°C
Diameters tolerance : +/-0,20mm
Mechanical stress : Flexural / Torsionnal / Compression stress
Flexural modulus : 35 GPa
Composite stacking : Fibers 90° and 20°
Process : Filament Winding
Internal diameter : 016
Thickness : 1mm
Material : E Glass
Cosmetics : Grip surface
Density: 2 g/cm3
Color : Black or red
