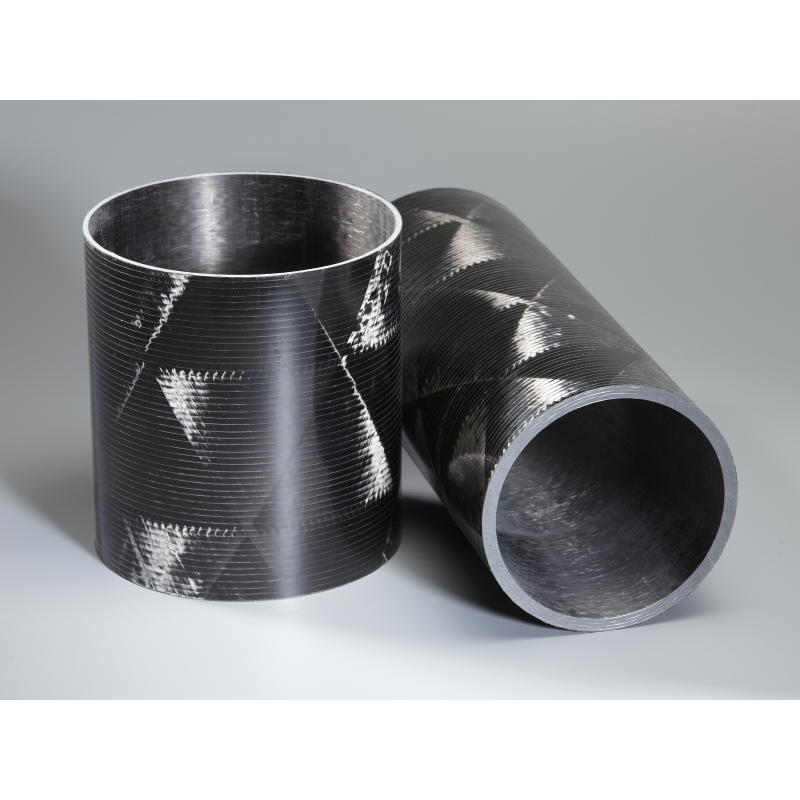

Carbon tube 58x62mm Technical View larger

Carbon tube 58x62mm Technical

New product

Filament wound carbon tube using HR carbon fiber and epoxy resin.
The one tube which can be adapted to a specific thickness, or a specific load case.

More details

5996

Items on stock

347,56 € tax excl.

:
Quantity Discount You Save
2 15% Up to 104,27 €

More info

Technical tube with flexural performance lower than Pullwinding tubes, but recommanded when oher stresses on the tube: torsionnal or pressure for example.

This tube can support 130°C temperature (Pullwinding 80°C)

These tubes are not in stock but we have a very short manufacturing time: 10 to 12 days

The main advantage for the customer: we can change the thickness or the angles of the layers if necessary.



Data sheet

Max temperature : 130°C
Diameters tolerance : +/-0,3mm
Mechanical stress : Flexural / Torsionnal / Compression stress
Flexural modulus : 85 GPa
Composite stacking : Fibers 90° - 20° - 30°
Process : Filament Winding
Internal diameter : 058
Thickness : 2mm
Material : HS Carbon fiber
Cosmetics : 30° fiber - Grip surface
Density: 1,6 g/cm3
