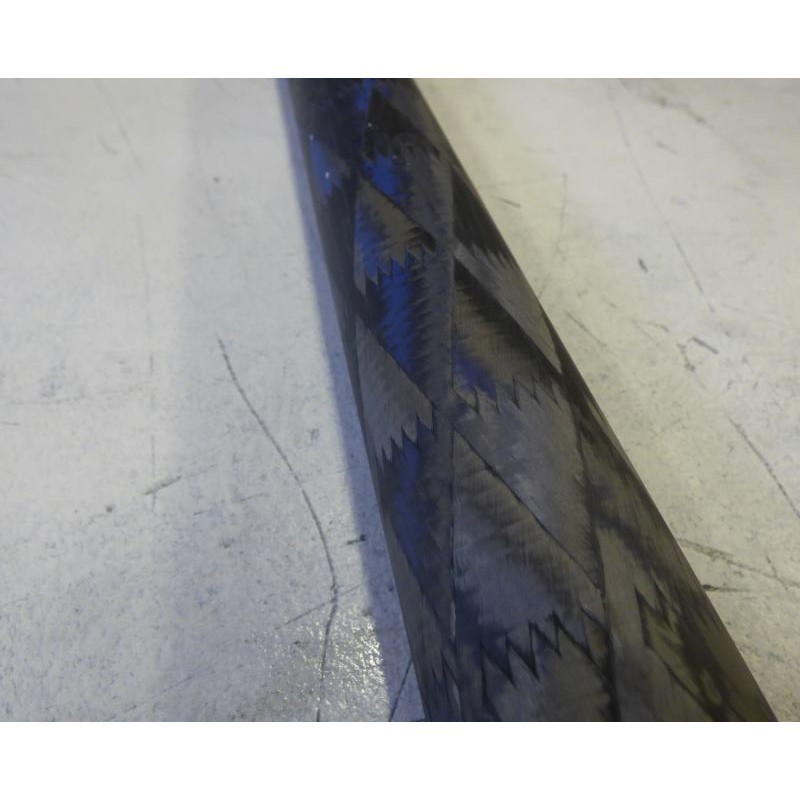

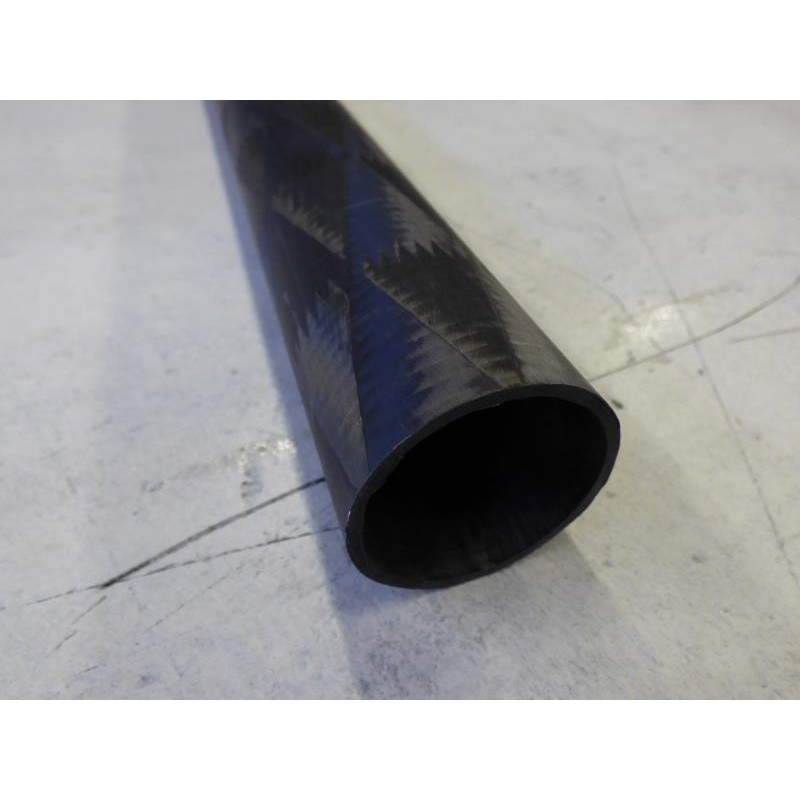

Filament wound carbon tube using HR carbon fiber and epoxy resin.
The one tube which can be adapted to a specific thickness, or a specific load case.
Items on stock
Warning: Last items in stock!
Technical tube with flexural performance lower than Pullwinding tubes, but recommanded when oher stresses on the tube: torsionnal or pressure for example.
This tube can support 130°C temperature (Pullwinding 80°C)
These tubes are not in stock but we have a very short manufacturing time: 10 to 12 days
The main advantage for the customer: we can change the thickness or the angles of the layers if necessary.
1 tube available
|Max temperature :||130°C|
|Diameters tolerance :||+/-0,20mm|
|Mechanical stress :||Flexural / Torsionnal / Compression stress|
|Flexural modulus :||70 GPa|
|Composite stacking :||Fibers 90° and 20°|
|Process :||Filament Winding|
|Internal diameter :||036|
|Material :||HS Carbon fiber|
