Glass fiber tube 15x20mm Wrapping View larger

Glass fiber tube 54x60mm Wrapping

New product

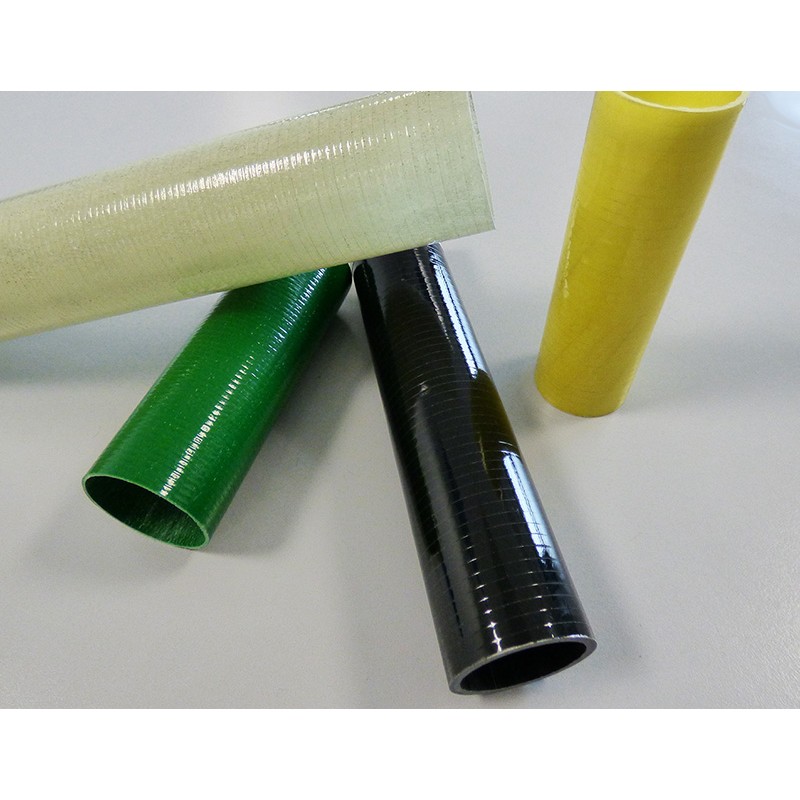

Glass fiber tube produced with wrapping process.
Natural color or 4 main colors using colored fabrics.



More details

16000

246,84 €

:

More info

Insulated tube with a good flexural strenght.
Grinded surface is possible on big quantities (better tolerance): post treatment like painting or varnishing.
Cutting operations under request.

Grinded operation on these tubes is useful to manufacture long tubes (assembling the basic tubes with smaller ones grinded and glued)



Data sheet

Max temperature : 120°C
Diameters tolerance : +/-0,3mm
Mechanical stress : Flexural/ Stress
Flexural modulus : 45 GPa
Composite stacking : 80% 0° / 20% 90°
Process : Wrapping
Internal diameter : 054
Thickness : 3mm
Material : E Glass
Cosmetics : Grip surface
Density: 2 g/cm3
Color : Black, yellow, green, orange
